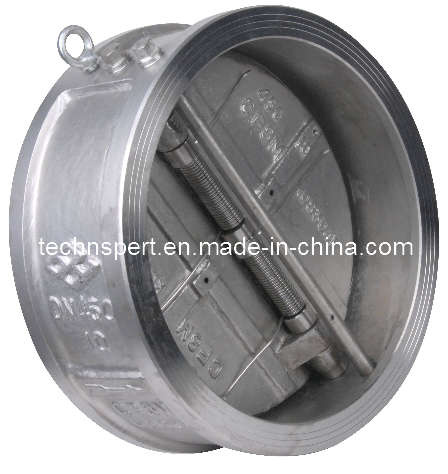

Dual-Plate Wafer Check Valve
Price: |
Negotiable |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Dual-Plate Wafer Check Valve
Design Description:
1. One Piece Body
2. Butterfly Swing Type
3. Dual-plate Disc, Long-Pattern
4. Renewable Split Disc
5. Horizontal or Vertical Service
6. Wafer Ends
7. Available with flanged ends
Applicable Standards:
1. Steel Check Valves, API 594/API6D
2. Steel Check Valves, ISO 14313
3. Steel valves, ASME B16.34
4. FACE TO FACE, ASME B16.10
5. END FLANGES, ASME B16.5
6. Inspection and test, API598/API6D
Standard Material Specification |
Part Name |
Material |
Body |
A216 WCB, A352 LCB, A351 CF8, A351 CF8M, A351 CF8C, A351 CF3, A351 CF3M |
Disc |
A216 WCB, A352 LCB, A351 CF8, A351 CF8M, A351 CF8C, A351 CF3, A351 CF3M |
Pin |
A182 F6a, A182 F22, A182 F304, A182 F316, A182 F321, A182 F304L, A182 F316L |
Spring |
AISI 9260, AISI 6150, A182 F304, A182 F316, A182 F321, A182 F304L, A182 F316L |
Size |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
in |
2 |
2 ½ |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
L (mm) |
60 |
67 |
73 |
73 |
86 |
98 |
127 |
146 |
181 |
184 |
191 |
203 |
219 |
222 |
H (mm) |
103 |
122 |
135 |
173 |
196 |
222 |
279 |
339 |
409 |
450 |
514 |
549 |
606 |
717 |
Weight (kg) |
2 |
3.2 |
4 |
6 |
9 |
12 |
22 |
38 |
54 |
80 |
118 |
210 |
240 |
410 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
Sfcv Rubber Lobe |
Material: |
Cast Steel |
Structure: |
Butterfly |
