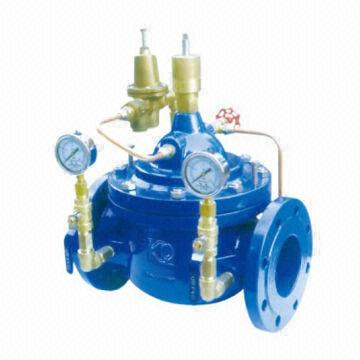

Flow Control ValveDescription:The valve limits the flow rate in the pipeline to a preset rate, regardless of upstream pressure variations. The valves is controlled by pilot valves, which takes use of integrated orifice plate to detect flow rate represented by differential pressure, and the differential pressure is used to control the pilot valves to implement flow rate control.
Technical SpecificationFlange connection dimension: GB/T 17241.6-1998, GB/T 9113.1-2000
Nominal pressure: PN0.6MPa, PN1.0MPa, PN1.6MPa, PN2.5MPa
Nominal diameter: DN40
~450mm
Suitable medium: Water
Inspection and test: GB/T 13927, API598
Body material: Cast iron, Ductile cast iron

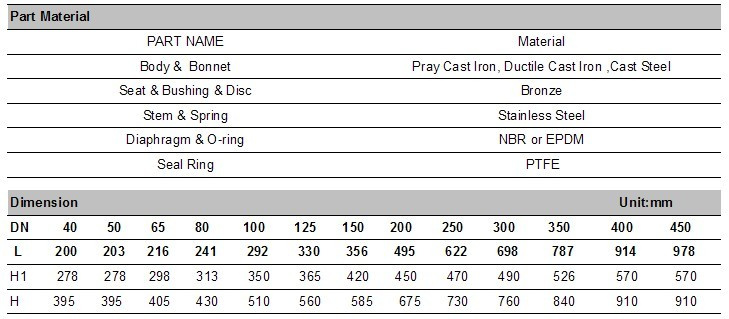

Dimension Unit:mm |
DN 40 50 65 80 100 125 150 200 250 300 350 400 450 |
L 200 203 216 241 292 330 356 495 622 698 787 914 978 |
H1 278 278 298 313 350 365 420 450 470 490 526 570 570 |
H 395 395 405 430 510 560 585 675 730 760 840 910 910 |
|
|
|
|
|
|
|
|
