Quick Details
Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Low Pressure |
Power: | Hydraulic | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Water | Port Size: | ISO | Place of Origin: | Hebei, China (Mainland) |
Model Number: | D741Xb | Brand Name: | Liqian | Model: | Hydraulic control butterfly valve |
design: | EN593 | face to face length: | ISO series 14/ series 13 | flange drilling: | EN1092 |
size: | DN100-DN4000mm, 4''--160'' | pressure: | PN6-PN10-PN16-PN25-PN40 | coating: | epoxy powder coated in min. 250 microns |
color: | blue RAL5005/ 5010/ 5015/ 5017 | certification: | WRAS, BV, CE, API, ISO, GOST, |
Packaging & Delivery
Packaging Details: | Hydraulic control butterfly valve Sea worthy packing: iron case, veneer case, wood case. |
Delivery Detail: | 6 weeks ex-works |

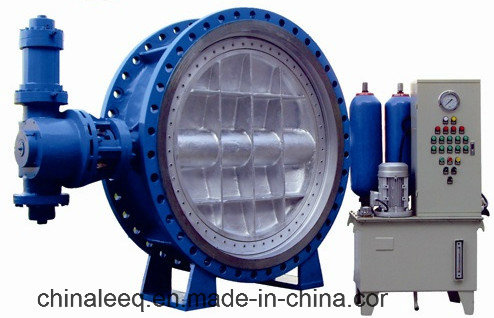

Hydraulic control butterfly valve
1. Hydraulic control butterfly valve size, pressure, medim and temp. range as listed below:
Size | DN100 to DN4000 |
Pressure | PN10, PN16, PN25, PN40 |
Suitablem | water, and other weak corrosive liquid etc. |
Temp. | -10~120°C |
2. Hydraulic control butterfly valve standard items:
Description | Standard |
Design and manufacture | EN593 |
Face to face | ISO5752 series14, EN558-1 series 14, DIN3202 F4 |
Flange and drilling | ISO7005-2, EN1092, DIN2501 |
Pressure test | EN12266 ISO5208 |
Top flange of bare shaft valve | ISO5211 |
Top flange on worm gearbox for e-actuator | ISO5210 |
3. Hydraulic control butterfly valve main part material items:
Name | Material |
Body | ductile cast iron, WCB, stainless steel |
Disc | ductile cast iron, WCB, stainless steel, Al-bronze |
Stem | SS420, SS431 |
Disc seat ring | EPDM,NBR,VITON |
Body seat ring | SS304 |
Retainer | SS304, SS316 |
Shaft bearing | Al-bronze, self-lubricating bearing |
Bolt & nuts | 8.8 grade galvanized, SS304 |
Coating | epoxy coating, thickness: min. 250 microns, color code: RAl5015, 5017, 5010, and etc. |
Notes: Other materials are available on request
4. Operating mode: lever, counter weight, hydrualic cylinder, and pack unit.
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
