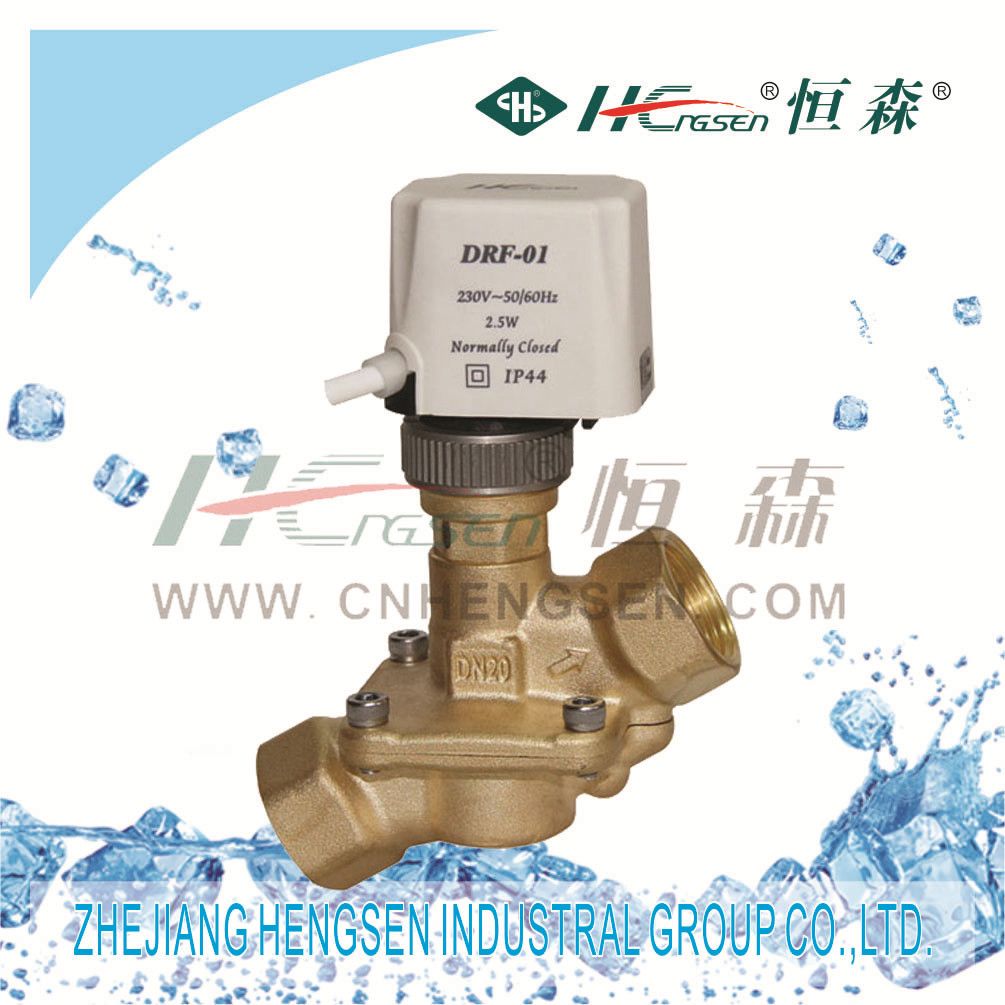

Dynamic Balance Valve

Dynamic Balance Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Product introduction
LPF dynamic balancing motorized valve integrates dynamic balance and motorized adjustment. This product is available for the temperature control of HVAC air-conditioning system's terminal equipments, such as air-conditioning cabinet, new fan group and air processor. Its smart module control equipment controls the water flow and temperature automatically to make energy be used rationally and management is automatically.

Feature
1.       LPF electric heating flow balance valve adopts ceresin wax propeller. There is no noise during PTC heating actuation working. It has spring reset function. After the power is off, the valve is closed and the running place will be instructed by indication. The screws installation is very easy, fast and convenient.
2.       Straight running and good interchangeability.
3.       KVS discrepancy≤5%
4.       Good stability. KVS will not change with different pressure.
5.       Energy saves. It saves more 6-20% energy than traditional system.
6.       High efficiency.
Comfort.

Specification
Power supply: 24VAC,110VAC,230VAC(220VAC)
Power consumption: 2W
Thrust: 110N
Stroke: 3mm
Full travel time: 3~5min
Connection: M30×1.5mm screw
Environment temperature: -5~60ºC
Lead wire length: 900mm
Shell material: fire proof PC(Inner material is fire proof PA66)
Shell protection grade: IP 44
Incline angle: 85°

Material and life time
Valve body: forged brass
Valve stem: stainless steel
o-sealing-ring: fluorine rubber
Inner parts: brass, stainless steel
Life time: more than 10 years
Prod Model: LPF
We are professional OEM manufacturer of HVAC Control Products, Refrigeration Parts&Tools, Brass fittings&Copper Fitting, Disperse pipe(refnet joint).

We founded in 1988 years and have 10 years ODM&OEM experiences.

We have 3 main series products.

(1)HVAC Control products:

-Motorized brass Ball Valve

-Motorized Zone Valve

-Electric Thermal Valve

-Brass Solenoid Valve(air, oil, water)

-Motorized Flange Iron ball valve

-Damper actuator

-Dynamic Pressure Balance Electric Regulating Valve

-Dynamic Balance Filter motorized ball valve

-Water Flow Brass Static Balance valve

-Electrical Control Auto compensation Plug valve

-Mechanical thermostat

-Digital thermostat

-Temperature sensor

-Liquid Flow Switch

-HVAC Brass Control Valve(with Actuator)

-HVAC Iron Control Valve(with Actuator)

(2)Refrigeration Parts&Tools:

-Double Manifold gauge sets-Single manifold set-Refrigeration Gauges

-Charging Hose-Quick Couplers-Sight Glass-Hand Valve

-Split Air Conditioning Valve-Refrigeration Ball Valve

-Refrigeration Solenoid Valve-Filling Valve-Can Tap Valve

-Needle Valve-capillary-Comb Slice-Cutting Knife

-Brass Nut-Brass tie-in

-Disperse pipe(refnet joint)

(3)Copper&Brass Pipe Fitting:

-copper Elbow-copper Tee-copper Straight coupling

-copper Reducing Coupling-copper U Bend-copper P-Trap

-Brass Solenoid Valve(water, oil, air)

-Brass Male&Female Eblow

-Brass Male&Female Tee

-Brass Male&Female connector

If you are interesting in our products and service,

Please contact with us, Thanks.
