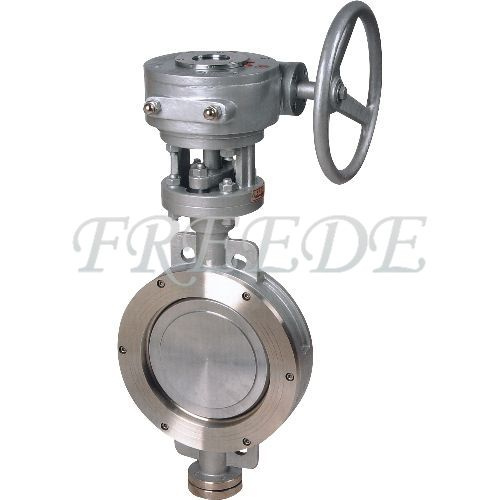

Eccentric Butterfly Valve
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
Eccentric Butterfly Valve
1. Size: 2-26" wafer type, lug type
2. Designs: DIN and ANSI
3. Materials: Body: Carbon steel, SS304 and SS316 Disc: SS304 and SS316 Shaft: SS416 and SS316, Seat: SS304 and ss316, Packing: Glass backed PTFE
4. Working Pressure: PN1.0-4.0MPa
5. Specification:
1) The double offset design of the double eccentric butterfly valve assures reduced seat wear and bidirectional seal, zero leakage. When open the valve, the disc does not contact the seat, so the seat life is extended and operating torques are reduced, then it is more easier for user's operating.
2) General: Standard valves tested to MSS SP-61. API 598 testing available on request.
For 2" through 24" sizes: Face-to-face dimensions meet, within specified tolerance, MSS SP-68 and API 609 requirements
| Markets: |
North America,Eastern Europe,Southeast Asia,Oceania,Mid East |
| Connection Form: |
Lug Support |
| Working Temperature: |
Medium Temperature (',120??C
|
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: |
Metal Hard Sealed |
| Structure: |
Double-Eccentric Sealing |
XIAMEN FREEDE INDUSTRY Co., Ltd. is a modern professional valve manufacturer, integrating scientific research, manufacturing, distribution and service. It is a leading valves manufacturer in China. We can produce 6500 tons per year of all kinds of valves and our turnover reaches USD16, 000, 000 in 2008. At present, the main products we have are: Ball valves, gate valves, globe valves, butterfly valves, check valves, knife gate valves, relief valves, trap valves, sanitary stainless steel joint, flange, pipe and all kinds of pipelines accessory. Matching standards from China, Japan, USA, Germany and France, which include GB, JB, JIS, API, ANSI, DIN and NF etc. More than 50 product types are available in over 400 sizes and 20 materials, in fact. And our engineers work tirelessly to innovate and improve. We release one new model every month.
More than just product selection, at Xiamen Freede you will find quality, durable hardware that can stand up under the most rigorous of applications. Our products are API and CE certified, Our company mainly serves such industries as petroleum, chemical industry, natural gas, metal smelting, printing and dyeing, electric power, mine, food & beverage, environmental protection, medicine, pulp & paper, water supply and drainage project. Owning to our high quality and moderate price many large companies use our products.
A complete talent selection and training mechanism has been established centering a hundred years to bring up a generation of good men while it should be based on training; An incentive mechanism has been established to promote talents to show themselves.
FREEDE Co. Has gathered a number of elites in the industry with a high-quality marketing team responsible for the market development and management in different regions. Being vigorous and devoted, they guarantee to provide total service for customers.
We've been manufacturing hardware since 1993. We can deliver a 20-foot container order in 3-4 weeks. Browse through our Showroom, and then send us your inquiries. Here, we always reply within 24 hours. We will provide new and regular clients with higher quality service under the driving power of technological innovation.
