Description:

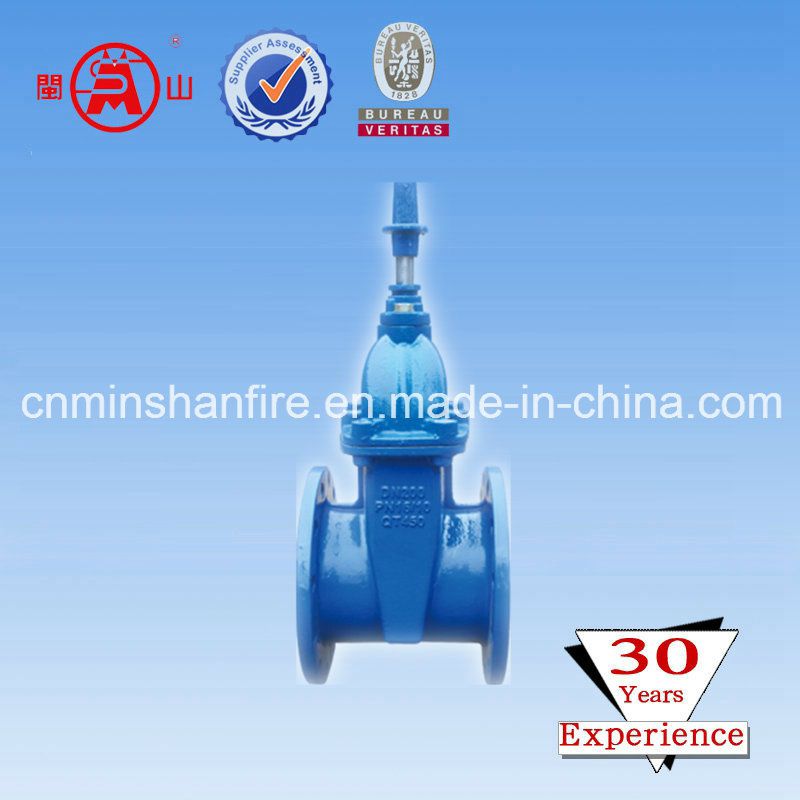

Elastic seat sealing gate valve
Technical data:
| Elastic seat sealing gate valve |
| Product Model | MSGZ45X-6/10/16 |
| Nominal diameter | DN40~DN600 |
| Nominal pressure | 0.6Mpa~1.6Mpa |
| Application medium | Water/Steam/Gas/Oil etc |
| Application temperature | 0ºC~80ºC |
| Drive mode | Handle wheel |
| Pressure test | JB/T9092-1999 |
| Structure length | GB/T12221-2005 |
| Design and manufacure | CJ/T216-2005 |
| Flange connection size | GB/T17241.6-2008 |
Main part and material:| No. | PART | MATERIAL |
| 1 | Body | Cast iron |
| 2 | Disc | Nodular cast iron with NBR or EPDM |
| 3 | Inside hexagonal bolt | Carbonization |
| 4 | Gasket ring | NBR/EPDM |
| 5 | Bonnet | Cast iron |
| 6 | Valve stem | Stainless steel |
| 7 | O Type sealing ring | NBR/EPDM |
| 8 | Footstep bearing | Tin bronze |
| 9 | Bolt | Stainless steel |
| 10 | Glant | Cast iron/Cast steel |
| 11 | Dust cover | NBR |
| 12 | Hand wheel | Malleable cast-iron |

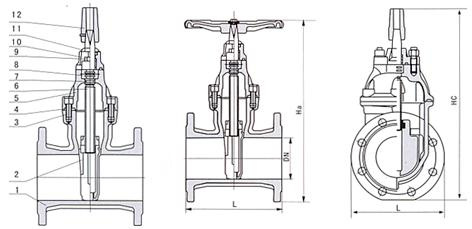

Image of gate valve 's structure:

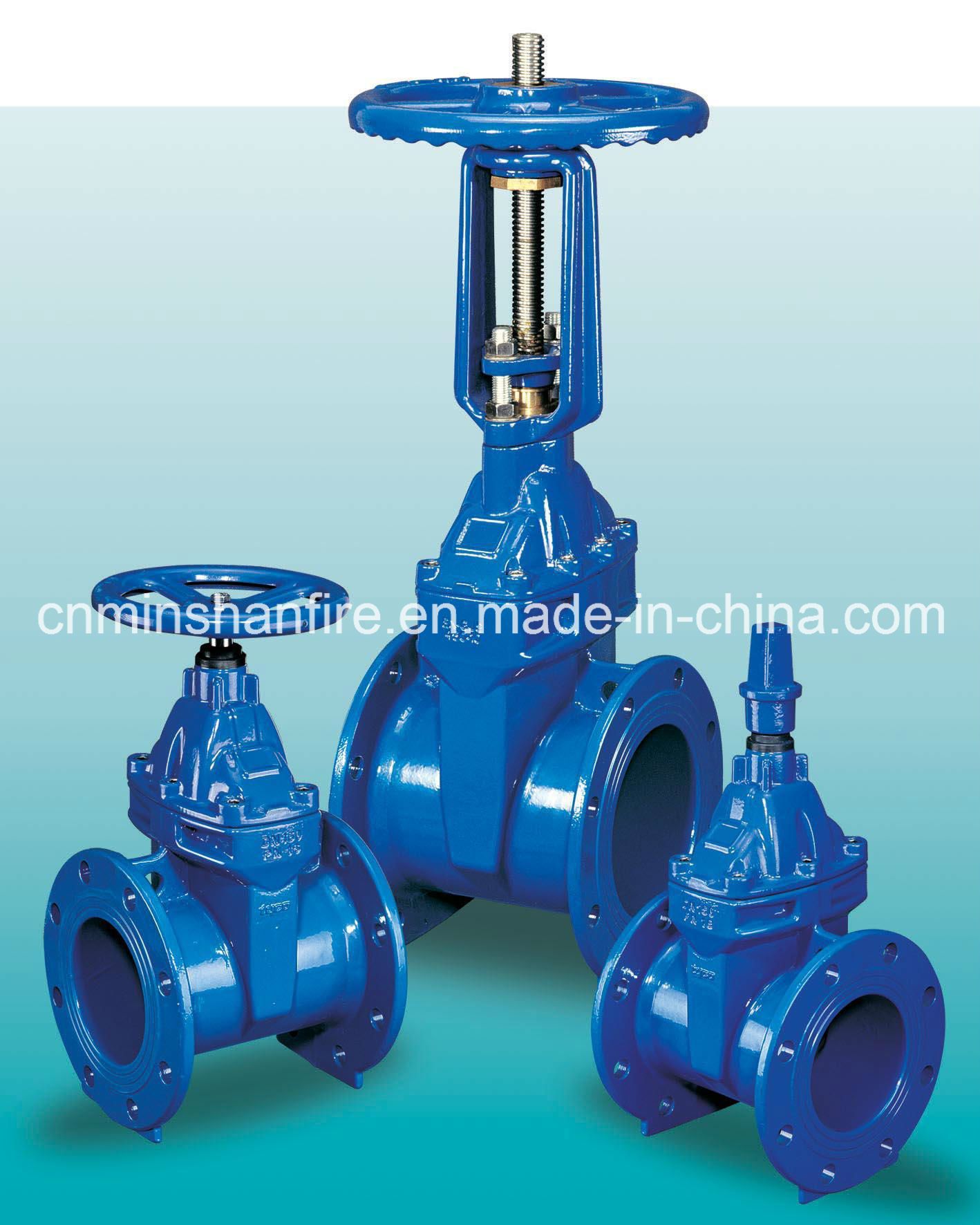

Sample of product:
Picture of our factory:
Our service :
Primary Competitive Advantages:
1. Our company has several years's experience in producing all kind of forged brass ball valve and fittings , we have the self-operated importing and exporting rights .
2.Our products are approved by ACS ,CE ,ISO9001/14001 approved .
3.We can produce the valve and fittings according to our customer's requirement, and if the order is large , we don't charge any mould fee .
4. We insist to popularize our brand"GTN" to our customers , and welcome to become our sales agency , We'll give our customer the special prices once the customer become our approved agency .
Outstanding Service:
Fast feedback: we promise to reply your inquiry within 24hours
Positive cooperation with your esteemed company
Good suggestions to your choice if necessary with our own rich experience
OEM accepted
Your visited to factory welcomed!
FAQ
Q: Are you a factory or trading company?
We are factory specialized on fire fighting equipment.
Q: Can I get a sample?
For certainly, please contact us for detail.
Q: What's the terms of the payment?
T/T, L/C, Western Union, MoneyGram, etc.Negotiable.
