Electric Actuator V-Type Control (cut-off) Ball Valve it make up of 3410R series electron type electrical drive and through way o-pattern type stop ball valve.
Soft(strong)sealthrough way o-pattern type stop ball valve that have the best stop function. When the valve opening, the flow way the same as pipe inside, the pressure losing smallness. The characteristic is better seal function, flow direction no limit, action aqility, maintain easy, useful life long. As the same caliber valve that have the biggest pass ability. It's a rotary type automata valve and have receive the signal of on-off ability. It would open or close rotary the 1/4 cycle only. It's fit for kinds of liquid, gas and fluid contain fibre and litter plasm.
It's fit for the industry strict with production process like petro, metallurgy, power, light industry, medical and so on
Note for Order-offering:
Electric Actuator V-Type Control (cut-off) Ball Valve
If you would like to purchase our products, please kindly fullfill the Specification note form or please note the following information:
1, type of the purchased product
2, Pressure
3, dimension, fixed flow capacity KV
4, signal pressure, range of springs
5, index of the flow
6, turn-on and turn-offer methods of the needed valves
7, the temperature range of the media
8, materials of the valve body and valve core
9, note wether there is enclosed sectors and please state clealy the specification
10, nay other special characteristics
sort |
3410R electrical actuato |
3610R full electronic electrical actuator |
|
type |
ZDRO-16b, 64k |
ZDRO-16b, 64k |
standard |
electromotion: DN-200 temperature: soft-20~180º C, strong-40~450º C |
DNmm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
flux factor Kv |
15 |
30 |
50 |
80 |
120 |
200 |
300 |
400 |
600 |
960 |
1300 |
2200 |
3400 |
5000 |
6700 |
8800 |
11000 |
14000 |
PN (Mpa) |
1.6 6.4 |
Mediun temperature |
Soft seal: -20 ~ +80º C(special can receive 350º C strong seal: -40 ~+450º C |
Drive |
electromotion: AC220V 50Hz |
The type of actuator |
3410R angle on-off type electrical actuator (3610R electron) |
signal contral |
AC220V, pros and cons joint signal(DC4 ~20mA ) |
Body |
ZG230-450 \ ZG1Cr18Ni9Ti\ ZG0Cr17Ni12Mo2Ti |
Disc |
ZG1Cr18Ni9Ti\ ZG0Cr17Ni12Mo2Ti\ polishing\ deal with azote turn |
Seat |
Soft seal: PTFE, Reinforced TFE; Strong seal: 1Cr18Ni9Ti\ 0Cr17Ni12Mo2Ti |
Flange |
GB9115.9-1988 GB9115.11-1988 JB79-59 |
Temperature |
-20-60º C(-35-60º C\ space heater inside) |
The standard coat color |
Dark blue ( non-coat when the body material is stainless steel |
Configuration Option |
3410R on-off position derailleur; 3610R space heater inside |
Leak |
soft seal; zero leak ; strong seal; accord withGB/T4213-92IV degree, product V-VI when have special request |

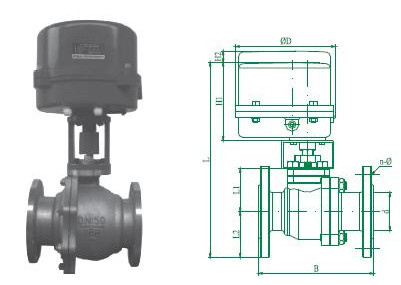

product type |
PN |
DN |
flange join size |
shape size |
D |
D1 |
d |
N-φ |
L |
L1 |
L2 |
H1 |
H2 |
φ D |
W |
B |
ZDRO-16K/B |
1.6Mpa |
15 |
95 |
65 |
45 |
4-φ 14 |
443 |
75 |
48 |
185 |
120 |
225 |
56 |
130 |
20 |
105 |
75 |
55 |
453 |
80 |
53 |
140 |
25 |
115 |
85 |
65 |
463 |
85 |
58 |
150 |
32 |
135 |
100 |
78 |
4-φ 18 |
518 |
90 |
68 |
225 |
155 |
255 |
68 |
165 |
40 |
145 |
110 |
85 |
531 |
98 |
73 |
180 |
50 |
165 |
125 |
100 |
558 |
115 |
83 |
200 |
65 |
180 |
145 |
120 |
570 |
120 |
90 |
220 |
80 |
195 |
160 |
135 |
8-φ 18 |
650 |
130 |
120 |
265 |
165 |
335 |
80 |
250 |
100 |
215 |
180 |
155 |
695 |
155 |
140 |
280 |
125 |
245 |
210 |
185 |
760 |
190 |
170 |
320 |
150 |
280 |
240 |
210 |
8-φ 23 |
925 |
210 |
190 |
390 |
120 |
470 |
65 |
360 |
200 |
335 |
295 |
265 |
12-φ 23 |
1010 |
265 |
230 |
250 |
405 |
355 |
320 |
12-φ 25 |
1145 |
325 |
280 |
600 |
300 |
460 |
410 |
375 |
1140 |
310 |
290 |
700 |
product type |
PN |
DN |
flange join size |
shape size |
|
D |
D1 |
d |
N- |
L |
L1 |
L2 |
H1 |
H2 |
φ D |
W |
B |
ZDRO-64K/B |
6.4Mpa |
15 |
105 |
75 |
55 |
4-φ 14 |
453 |
80 |
53 |
185 |
120 |
225 |
56 |
|
20 |
125 |
90 |
68 |
4-φ 18 |
471 |
88 |
63 |
|
25 |
135 |
100 |
78 |
476 |
88 |
68 |
|
32 |
150 |
110 |
85 |
8-Φ 18 |
530 |
95 |
75 |
225 |
155 |
255 |
68 |
|
40 |
165 |
125 |
95 |
540 |
98 |
83 |
|
50 |
175 |
135 |
105 |
553 |
105 |
88 |
|
65 |
200 |
160 |
130 |
8-φ 23 |
630 |
145 |
125 |
|
80 |
210 |
170 |
140 |
730 |
180 |
150 |
265 |
165 |
335 |
80 |
|
100 |
250 |
200 |
168 |
8-φ 25 |
755 |
190 |
165 |
|
125 |
295 |
240 |
202 |
8-φ 30 |
790 |
215 |
175 |
|
150 |
340 |
280 |
240 |
8-φ 34 |
995 |
260 |
210 |
390 |
120 |
470 |
65 |
|
200 |
405 |
345 |
300 |
12-φ 34 |
1065 |
290 |
250 |
|
250 |
470 |
400 |
352 |
12-φ 41 |
1160 |
320 |
300 |
|
300 |
530 |
460 |
412 |
16-φ 41 |
1290 |
400 |
350 |
|
