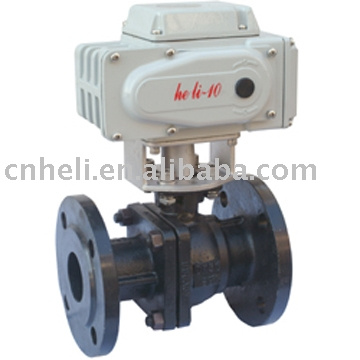

Electric Ball Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Electric ball valve high quality but competitive price,light weight,small volume,easy installation,safe and convenient to use. Quick Details
- Standard or Nonstandard: Standard
- Structure: Ball
- Pressure: Medium Pressure
- Power: electromotion
- Material: Plastic
- Temperature of Media: Medium Temperature
- Media: Water
- Port Size: 50Nm/60Nm/100Nm
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: HL
- Brand Name: HL
- Certificate: CE,CQC,ISO9001
Model
|
HL-10 |
|
Power |
DC12V |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
|
Motor power |
40W,23W |
|
Rated current |
4.8A |
2.4A |
0.32A |
3A |
0.64A |
0.24A |
0.19A |
|
Output torque |
100Nm |
50Nm/60Nm/100Nm |
|
Action time |
10S |
13S/15S/20S/30S |
|
Circuit control |
B,S,R,H,A,K,D,T |
|
Rotary angle |
0-90° |
|
Weight |
4 Kg |
|
Voltage-with standing valve |
500VAC/1min |
1500VAC/1min |
|
Insulated resistance |
100MΩ/300VDC |
100MΩ/500VDC |
|
Protection class |
IP67 |
|
Surrounding Temperature |
-25°C~60°C(The other temperature can be customized) |
|
Installation angle |
Any angle |
|
Case material |
Aluminium die-casting components |
|
Optional function |
Overload protection, heater |
| Prod Model: |
HL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Application: |
Industrial Usage |
| Material: |
Plastic |
