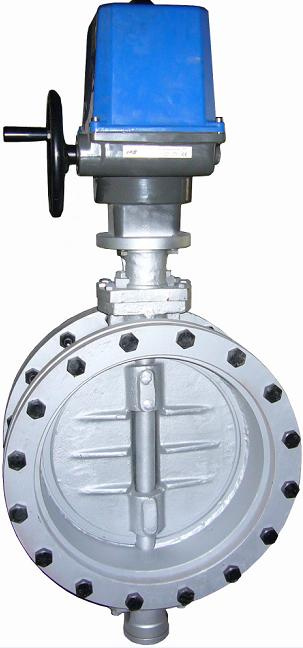

VBL can work with high flow rate, low differential pressure fluid. The valve channel is straight way with self- cleaning ability. The fluid can be pulpy. The structure is simple, cost is low, and installment space is small.
Nominal Diameter: 80~600mm
Standard CV Value: 80~9700
Nominal Pressure: JIS 10K/ PN 0.6Mpa
Body Material: Carbon steel, stainless steel, corrosion resisting alloy, etc.
Inner Assembly Material: Carbon steel, stainless steel, corrosion resisting alloy, etc.
Leakage Class: 1.38~2%CV
Temperature Range: -20c - + 250c
Actuator: SR, DA, PSQ, 3810, etc.
Adjustable rate: 20: 1
As a professional manufacturer in control valve, executive system, and the assistant department, We company always apply ourselves to develop high quality and technical instrument.
By now, we company have more than 50 systems of products, which contains over 2000 models valve and 30 types of attachment. Our products are widely used in petroleum industry, chemical industry, smeltery, light manufacturing, papermaking, medicine producing, food-processing, municipal Environmental Protection and many other industry where automatic control is needed.
