1. Introduction

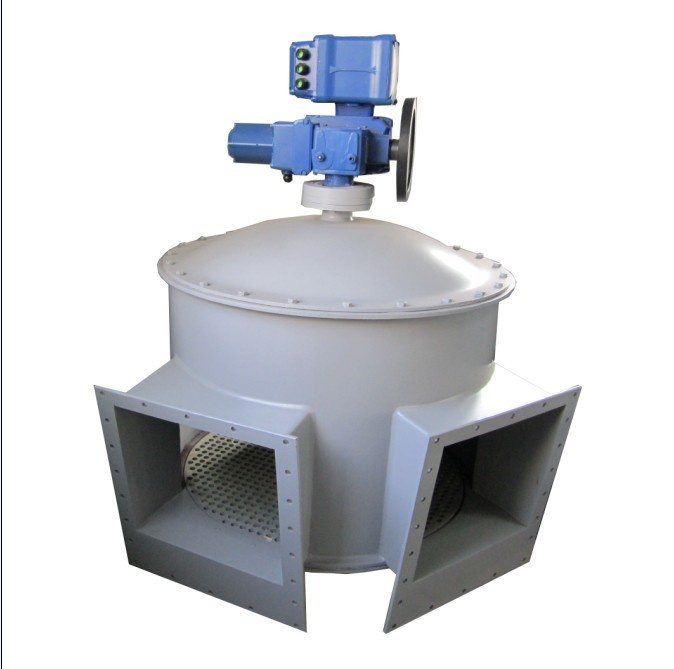

ESV series electric distribution valve is applied to control the powder materials flow direction by adjusting the cylinder position of the valve, which is widely used in building materials, metallurgy, mining, light industry, food and other industries, and it is the ideal equipment for direction change during transmission system for solid grains and powder materials.
Electric distribution valve is controlled by electric actuator, which is expected to rely on the 4-20mA input signals.
2. Structure Features
This distribution valve has a quality steel plate welded structure, with small size, light weight, little resistance, which is drive by Bernard electric actuator, can realize the remote control of the material flow.
Electric
Distribution Valve |
Specification |
Φ530mm |
Φ830mm |
Φ1050mm |
Max Flow Volume |
300t/h |
500t/h |
630t/h |
Install Ascent |
8° |
8° |
8° |
Implementing Unit Model |
AS-100 |
AS-200 |
AS-200 |
Motor Power (KW) |
0.03 |
0.10 |
0.10 |
Max Torque (Nm) |
1000 |
2000 |
2000 |
Input, Output SignalmA |
420 |
