We produce various flow swich and widely used for gas and liquid. and below is the mainly model.
Features:
good repeatability
hermetic separation of electrical and hydraulic components
low pressure loss
not include the bellows
corrosion resistant
magnetic switch.
Application:
gaseous /liquid
The flow switch for ground-source heat-pump is mainly applicable to industrial automation/mechanical equipment/air compressing industry/ refrigeration and air-conditioner. The magnet not contact with flowing water, so can normally work in sewage discharging system.

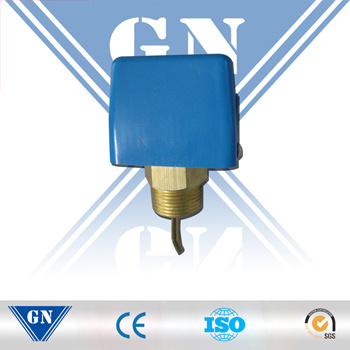

CX-FS-FB Paddle Flow Switch |
| Diameter | DN25…DN150 |
| Set range | 20…1800L/min(water) |
| Repeatability | ±2.5%FS |
| Connection | terminal type |
| Output | Mechanical switch NO+NC(250VAC,3A) |
| Pressure proof | 16 bar |
| Average pressure loss: | 0.08bar( at max.flow rate) |
| Ambient temperature | -25…80C |
| Medium temperature | 0…90C |
| Interface screw | G1"pipe screw |
| Protective class | IP33 |
| Weight | 0.55kg |
| Material | Main body | stainless steel |
| Process connection: | brass |
| Connection rod | brass |
| Baffle | stainless steel |
| Seal | NBR |
| Housing | ABS |
| CX-FS-FB12 Baffle Flow Switch |
| Repeatability | ±2.5%FS |
| Connection | terminal type |
| Output | Mechanical switch NO+NC(250VAC,3A) |
| Pressure proof | 16 bar |
| Average pressure loss: | 0.08bar( at max.flow rate) |
| Ambient temperature | -25…80ºC |
| Medium temperature | 0…90ºC |
| Interface screw | G1"pipe screw |
| Protective class | IP33 |
| Weight | 0.85kg |
| Material | Main body | stainless steel |
| Process connection: | brass |
| Connection rod | brass |
| Baffle | brass |
| Seal | NBR |
| Housing | ABS |
| CX-FS-FPD20 Pointer display type piston flow switch |
| Medium | liquid or gas |
| Repeatability | ≤±3%full scale |
| Pressure | 200bar(stainless steel type)100bar(brass type) |
| Output | normally open output |
| Contact capacity | 240VAC / 110VDC 1.5A |
| Ambient temperature | -20…70ºC |
| Medium temperature | 0…70ºC |
| Protection | IP65 |
| Outlet | M12*1 |
| Material | Electronic body | PC |
| Switch body | stainless steel / brass nickel plating |
| Spring | stainless steel |
| CX-FS-FR11 Electronic Flow Sensor |
| Set range | 1…150cm/s( water),3…300cm/s(oil),20…2000cm/s(air) |
| Output | PNP, NPN, Relay ,4-20mA, NO+NC (SPDT) |
| Power supply | 24V±20%DC or 230V±15%AC |
| Switching Current | Max.400mA(PNP or NPN type ), Max.4A( Relay type ) |
| Unload current | Max.80mA |
| Flow indicator | LED (6) |
| Set type | potentiometer set |
| Proof Pressure range | 100bar |
| Temperature gradient | 4ºC/s |
| Response time | 1--13s,standard is 2s |
| Initialization time | 8s |
| Electrical protection | reversed-phase ,short circuit ,overload protection |
| Protection class | IP67 |
| Medium temperature | 20--80ºC |
| Environment temperature | -20--80ºC |
| Storage temperature | -20--100ºC |
| Connection | M12 connector /2m cable (option) |
| Material | Probe is stainless steel . Housing is PBT |
| Weight | 0.4kg |
| CX-FR-FR12 Electronic flow switch |
| Set range | 1…150cm/s( water),3…300cm/s(oil),20…2000cm/s(air) |
| Output | PNP, NPN, Relay ,4-20mA, NO+NC (SPDT) |
| Power supply | 24V±20%DC |
| Switching Current | Max.400mA(PNP or NPN type ), Max.4A( Relay type ) |
| Unload current | Max.80mA |
| Flow indicator | LED (6) |
| Set type | potentiometer set |
| Proof Pressure range | 100bar |
| Temperature gradient | 4ºC/s |
| Response time | 1--13s,standard is 2s |
| Initialization time | 8s |
| Electrical protection | reversed-phase ,short circuit ,overload protection |
| Protection class | IP67 |
| Medium temperature | 20--80ºC |
| Environment temperature | -20--80ºC |
| Storage temperature | -20--100ºC |
| Connection | M12 connector /2m cable (option) |
| Material | Probe is stainless steel . Housing is PBT |
| Model | Connection | Notes | Accuracy |
| HFS-25 | 1″-11½NPT Screw | Red Case | 5% |
| HFS-20 | ¾″-14NPT Screw |
| HFS-15 | ½″-14NPT Screw |
| JYF-25 | 1″-11½NPT Screw | White Case | 2-3% |
| JYF-20 | ¾″-14NPT Screw |
| JYF-15 | ½″-14NPT Screw |
| Rated Voltage?Rated Amps | A.C.125~250V | Power(Cosmp.) |
|
| Non-inductive Current | 12A | 1 |
|
| Full Load | 12A | 0.75 |
|
| Locked Roter | 72A | 0.45 |
|
| Required Flow for actuating switch (m3/h) |
|
| Pipe size (in) | 1 | 1-¼ | 1-½ | 2 | 2-½ | 3 | 4 | 5 | 6 | 8 |
|
Min.
Flow | Flow lower,1-2 closed | 1 | 1.3 | 1.7 | 3.1 | 4.1 | 6.2 | 8.4 | 12.9 | 16.8 | 46.6 |
|
| Flow lower,1-3 closed | 0.6 | 0.8 | 1.1 | 2.2 | 2.8 | 4.3 | 6.1 | 9.3 | 12.3 | 38.6 |
|
Max.
Flow | Flow lower,1-2 closed | 2 | 3 | 4.4 | 6.6 | 7.8 | 12 | 18.4 | 26.8 | 32.7 | 94.2 |
|
| Flow lower,1-3 closed | 1.9 | 2.8 | 4.1 | 6.1 | 7.3 | 11.4 | 17.3 | 25.2 | 30.7 | 90.8 |
|
