Product Description

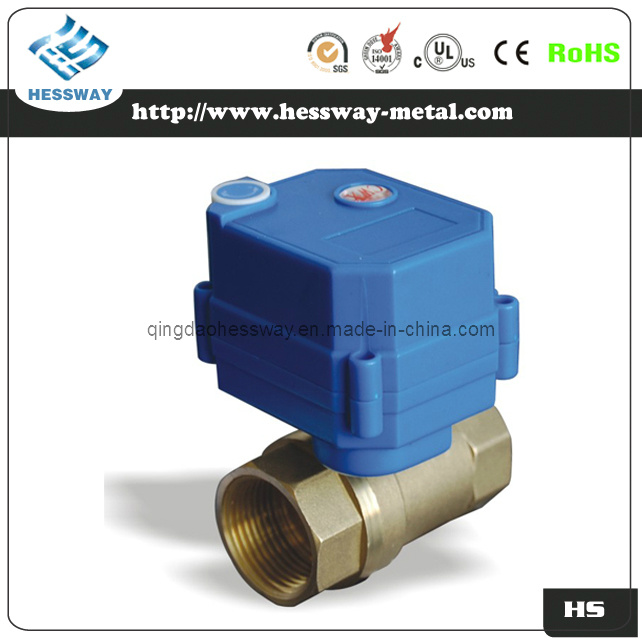

Electric Flow Control Valve with CE (HS-Q67)
Product Characteristics
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification
Applications
1. Water treatment industry gas valve
2. Process control motorized ball valve
3. Industrial automation safety valve
4. Pharmaceutical equipment valve
5. Cleaning equipment shut off water pipe valve
6. IC card water meters, heat energy meters, solar instrument.
7. The central air conditioning fan coil, fire sprinkler
8. Agriculture Irrigation equipment
9. Drinking water equipment, Water heater, washing machine, AHW etc.
Technical indicators
Size: 1 to 1-1/4 inches, full port metal ball valve, 1/2 to 1 inches plastic ball valve
Material: brass, stainless steel, UPVC, CPVC
Working pressure: 1.0 mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 15W
Manual override: available
Material description
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel
Product size |
NPT 1/2" NPT 3/4" NPT 1" NPT 1-1/4" Optional |
Maximum working pressure |
1.6MPa |
Circulation medium |
Fluid, air |
Rated voltage |
5, 12, 24, 110 to 220V AC/DC Optional |
Working current |
≤80MA |
Open/close time |
≤15S |
Life time |
70000 times |
Valve Body material |
Brass Nickel plated Brass 304 Stainless steel 306 Stainless steel Optional |
Actuator material |
Engineering Plastics |
Max. torque force |
2Nm,4Nm,6 Nm Optional |
Cable length |
0.3m, 0.3m, 0.7m Optional |
Liquid temperature |
2centigrade - 90centigrade |
Indicator |
Yes No Optional |
