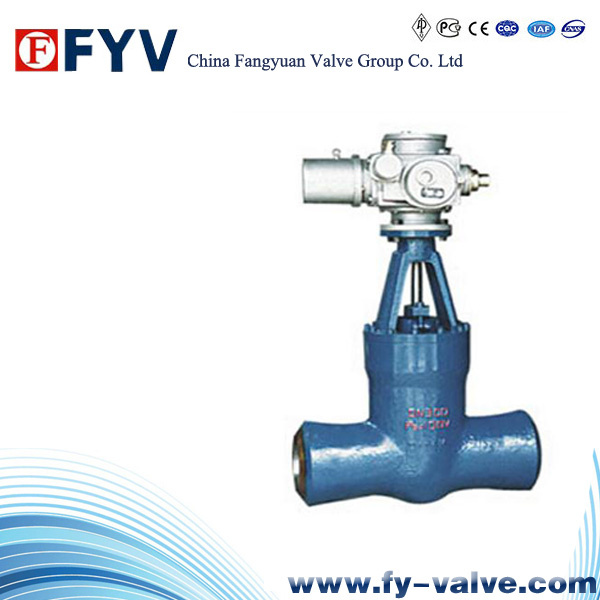

Electric Gate Valve for Electric Station (Asme B16.34)

Electric Gate Valve for Electric Station (Asme B16.34)
Price: US $ 29-49/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Specifications:
Gate valves is one of the most common open or close the valve, the use of the gate is up and down to work full open and full close to block fluid in the pipeline.
The gate is usually wedge shaped. When the valve is wide open, the gate is fully drawn up into the valve, leaving an opening for flow through the valve the same size as the pipe in which the valve is installed. Therefore, there is little pressure drop or flow restriction through the valve.
Pressure grade rangeClass 1500~3500
Drift diameter range2 1/2''~22''
Driving manner&scope of applicationGate valveHand wheelClass1500Class2000~2500Class3500
2 1/2''~8''2 1/2''~6''3''~4''
Bevel gearClass1500Class2000~2500Class3000
8''~22''6''~16''5''~12''
Electric drivingClass1500Class2000~2500Class3000Class3500
2 1/2''~22''2 1/2''~16''10''~12''3''~18''
Globe valveHand wheelClass1500Class2000~2500Class3500
2 1/2''~6''2''~4''2 1/2''~3''
Bevel gearClass1500Class2000~2500Class3500
5''~8''4''~12''3''~6''
Electric drivingClass1500Class2000~3500
3''~8''2 1/2''~6''
Y-type globe valveHand wheelClass1500Class2500
2 1/2''~6''2''~4''
Bevel gearClass1500Class2000Class2500Class3500
5''~8''4''~12''3''~14''3''~6''
Electric drivingClass1500Class2000Class2500Class3500
3''~8''4''~12''2''~14''3''~6''
Check valve_Class1500~2000Class2500
2 1/2''~14''3''~8''
Pressure class 1500lb~3500lb

No.
Accessory Name
Material
1- BodyWCB/WC1/WC6/WC9/C12
2-Sealing ringGraphite
3-BonnetWCB/WC1/WC6/WC9/C12
4-DiscWCB/WC1/WC6/WC9/C12
5-StudA193-B7/ A182F22
6-SeatA105/A182-F11/F22/F5/F9
7-StemASTM A182Gr.F6a/ ASTM A182F22
ASTMA182-F11
8-PackingGraphite
9-Quarto ringASTM A182Gr.F6a/ ASTM A182-F22
10-NutA194-269/ A182F22
11-Valve stem nutCopper alloy
12-HandwheelASTM A47-32510

Prod Model: FYV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2''-42''
Class: 150-1500lb
O-Ring Sealing: PTFE,NBR,Rptfe
Ends Con.: RF,Rtj,Sw,Bw
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
Fangyuan Valve Group Co. Ltd, seated at Wuxing Industrial Zone, Oubei, Yongjia County, so called as "Pump & Valve Village of China", close to the national scenic spot Nanxijiang River to the east and facing the downtown of Wenzhou City to the south, and established in 1998 with the former as Zhejiang Fangyuan Valve Manufacturing Co. Ltd, has got a great achievement via hard work and continual going forth ahead and become a magnate of plate gate valve from an unknown small enterprise and leads the future of this industry. Fangyuan Valve Group Co. Ltd was derived from Zhejiang Fangyuan Valve Manufacturing Co. Ltd in 2005 and holds 5 stock subsidiaries, three production bases in Wenzhou, Shanghai and Lishui and a cast base in Lishui, a total registered capital up to 4, 000, 000 USD, a total land area 110000m2, over 600 staff members, 60 of which are technicians, a digital process center and more than 350 sets of various middle and large equipments and an annual output up to 12000 tons.

This Group comes as a key enterprise among the said"Pump & Valve Village of China"and a well known enterprise in the national valve industry and specializes in the production of plate gate valve, gas valve, electric station valve etc., with the development, design and invention patent know-how up to the advanced technical level of the world and the leading level of the nation and some of the products used to replace the imported ones. This Group has been accredited to ISO9001, API6A/6D, CE, AZ etc., won the first prize of scientific advance of Zhejiang Province and elected as a member of the first-grade supply network of China Petroleum, a member of China Petrochemical Resource Market, a member of No. 1 Energy Network, a member for supply of the national electric power system, an appointed production enterprise by Chemical Equipment General Corp., a Wenzhou high-tech enterprise, a start enterprise of Yongjia County, one of the 30 powerful enterprises among the said village and a banking credit AAA grade enterprise in the successive recent years. It holds a powerful strength in the technical, management and market etc. Respects and a notable superiority in the severe market competition.

The products, approved by the nation and province early or late, have been elected as quality products of Zhejiang Province and well-known ones of Wenzhou. This Group follows the guide policy of"takeing people as the base, managing the company with laws, prospecting the enterprise with quality, continuing innovations"and makes the products well sold to all over the country and USA, Canada, the Middle East, Europe etc. World markets, greatly favored by the users therein. Therefore a solid basis has been made for the further open-up of the world market, for the making of Fangyuan brand, for the national industrial progression and for the great target to create a valve magnate of China and step forward to the 50 powerful valve companies of the world.

Slab gate valve: Slab gate and expanding gate, double sealed upstream and downstream design, double block and bleed open and closed design. Size: DN50~DN1400, pressure: PN16~PN420, handwheel, gear, electric, pneumatic.

Fully welded ball valve.

Forged steel valve. Material: A105, LF2, F11, F22, F5, F304, F316, F321 etc.
