Wenzhou HELI automatic meter co. Ltd. HL is a high-tech enterprises specialized in manufacturing motorized valve actuators and control valves, integrating scientific research, production, distribution and service. Founded in 1999, covers an areas of 20000 square meters. More than 200 employees, including 25% of engineers and technicians. Our hit products are electric actuators, air damper actuators, pneumatic actuators, and other automatic control products.
Our company always pay attention to brand strategy and marketing innovation, all of HELI products have passed the CE certification and the testing of Shanghai industrial Automatic Instrument Institute with every performance and index qualified. We have international advanced production line, precise machining center and perfect testing equipment, according to ISO9001-2008(CQC) international quality management system to organize production.
"people-oriented, technology navigation; Based on the market, sincere service " are our company philosophy, eager to progress, active in innovation, seek after truth, advance with times, to push our HELI brand to all of the world.
HELI will bring you much more convenience.
Quick Details
Standard or Nonstandard: Standard
Structure: Ball
Pressure: High Pressure
Power: Electromotion
Material: Casting
Temperature of Media: High Temperature
Media: Water
Port Size: 50Nm/60Nm/100Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HL-10
Brand Name: HELI
Certification: ISO9001, CE, CQC
Packaging & Delivery
Packaging Details: In carton or wooden case
Delivery Detail: In 15 days
Specifications

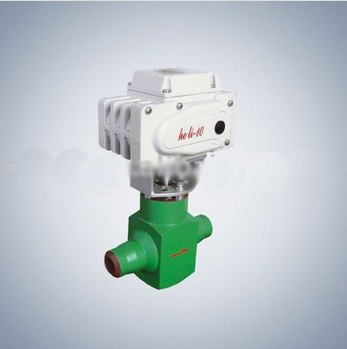

Electric High Pressure Valve
Small volume, lightweight, exquisite and elegant appearance, compact structure, easy to install
Model
|
HL-10 |
Power |
DC12V |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
Motor power |
40W,23W |
Rated current |
4.8A |
2.4A |
0.32A |
3A |
0.64A |
0.24A |
0.19A |
Output torque |
100Nm |
50Nm/60Nm/100Nm |
Action time |
10S |
13S/15S/20S/30S |
Circuit control |
B,S,R,H,A,K,D,T |
Rotary angle |
0-90° |
Weight |
4 Kg |
Voltage-with standing valve |
500VAC/1min |
1500VAC/1min |
Insulated resistance |
100MΩ/300VDC |
100MΩ/500VDC |
Protection class |
IP67 |
Surrounding Temperature |
-25°C~60°C(The other temperature can be customized) |
Installation angle |
Any angle |
Case material |
Aluminium die-casting components |
Optional function |
Overload protection,heater |
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.
Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.
HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.
Sincerely welcome friends all over the world to come here for negotiation and cooperation.
