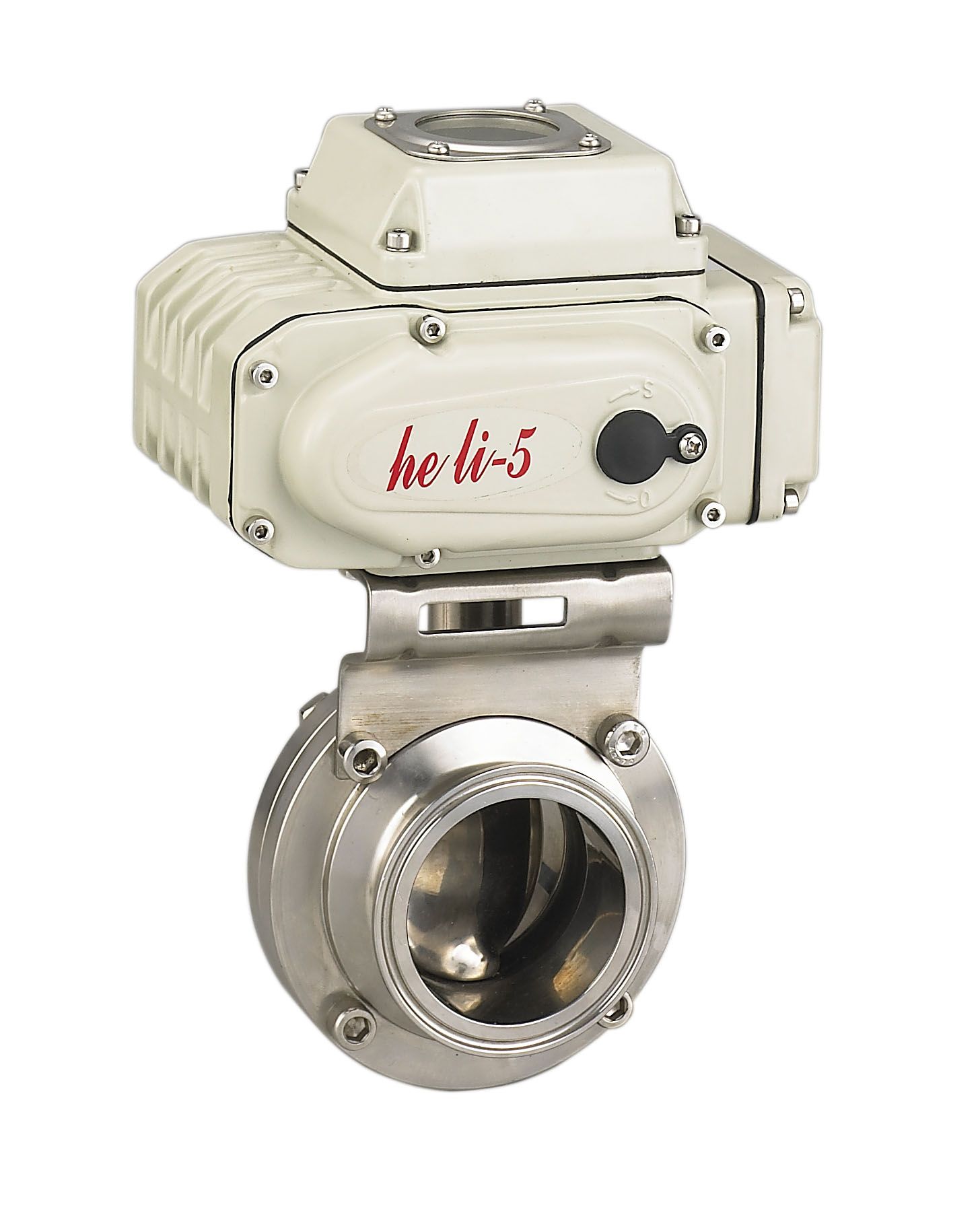

Electric Hygienic Butterfly Valve

Electric Hygienic Butterfly Valve
Price: US $ 204/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Quick Details
Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: Medium Pressure
Power: Electromotion
Material: Stainless Steel
Temperature of Media: Medium Temperature
Media: Water
Port Size: 10NM/15Nm/30Nm/50Nm
Place of Origin: Zhejiang, China (Mainland)
Model Number: HL-05
Brand Name: HELI
Certificate: CE, CQC, ISO9001: 2000
Packaging & Delivery
Packaging Details: In carton
Delivery Detail: 30 days after payment
Model

HL-05
PowerDC12VDC24VDC220VAC24VAC110VAC220VAC380V
Motor power10W,20W
Rated current3.8A2A0.21A2.2A0.48A0.24A0.15A
Output torque30Nm/50Nm10NM/15Nm/30Nm/50Nm
Action time6S/10S 6S/10S/20S/30S
Circuit controlB,S,R,H,A,K,D,T
Rotary angle0-90°
Weight2.2Kg
Voltage-with standing value500VAC/1min1500VAC/1min
Insulated resistance100MΩ/300VDC100MΩ/500VDC
Protection classIP67
Surrounding Temperature-25°C~60°C(The other temperature can be customized)
Installation angleAny angle
Case materialAluminium die-casting components
Optional functionOverload protection, heater
Prod Model: HL-05
