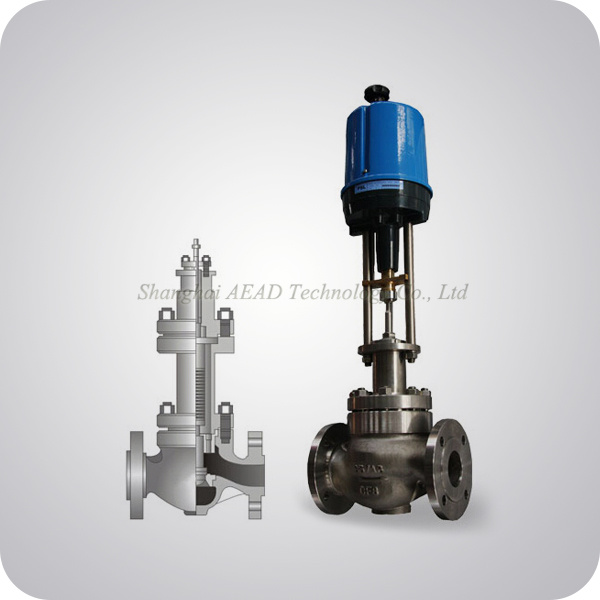

Electric Single Seat Control ValveOverview
AEAD Electric single seat control valve is a top entry globe type control valve, which is
manufactured under ISO 9001 quality assurance system. The body channel is streamlined
by S shape with low pressure loss, high capacity, wide regulating range, and high accuracy
in flow characteristics. The plug features with guiding area and good vibration resistance.
The control valve is equipped with electric actuator and compact in structure as well as big
in output force. This valve is designed to control a broad variety of fluids, like steam, water,
most of the medium and gases.
Features
1. Electric actuator for wide application
2. Balanced trims are suitable for high pressure drop and shutoff
3. Hardened trims to handle high pressure drop applications
4. Bellows seal for special medium
5. Extended bonnet for low temperature
6. Finned bonnet for high temperature
7. Higher maximum valve flow coefficients
8. Bigger body volume to reduce cavitations
9. Reduced trim can be chosen to provide wide capabilities for site applications
Technical Specifications
1. Body type: Single seat, globe control valve type
2. Size: DN15~DN250 (3/4" to 10")
3. Pressure Class: PN16,PN40,PN64, ANSI 150,ANSI300,ANSI600
4. Characteristics: Equal Percentage, Linear, quick open
5. Body Materials: ZG230~450, ZG1Cr18Ni9, WCB, LCB, CF8M, CF3M
6. Trim materials: 304, 316, 304L, 316L
7. Temp range: -196°C to +566°C
8. Connection: Flanged, Socket welding, Butt welding
9. Gland packing: PTFE, Braided PTFE, Grafoil
10. Leakage: Class IV (Metal seat, standard), Class V, Class VI (Soft seat, zero leakage)
