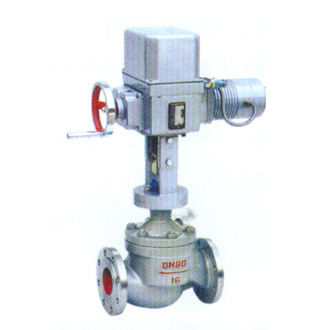

Electric sleeve control valve takes single-phase AC 220V power as action force, receives 0~10mA DC signal, automatically control the opening of valve, thus realize continuous regulation of pressure, temperature, flow, liquid level and other processing parameters. It's an important part of automatic adjusting system, widely used in power, metallurgy, chemical, light industry, food and other automatic control systems.
Electric sleeve control valve is with larger flow coefficient, large allowed pressure difference, good stability, large opening of guide structure, not easy to vibrate when work, strong adaptability, easy to install or uninstall.
Specifications
DN(mm) |
3/4" |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
Rated flow coefficient kv |
Single-seat |
P |
0.08~0.8 |
1.2~5.0 |
8 |
12 |
20 |
32 |
50 |
80 |
120 |
200 |
280 |
450 |
|
|
Double-seat |
N |
|
|
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
Sleav |
M |
|
|
15 |
|
20 |
30 |
|
75 |
115 |
|
240 |
350 |
|
|
PN (MPa) |
1.6 4.0 6.0 |
Travel (mm) |
10 |
16 |
25 |
40 |
60 |
100 |
Actuator |
DKZ-310/310C |
DKZ-410/410C/510/510C |
DKZ-510/510C |
Signal |
IItype 0-10mA DC IIItype 4-20mA DC |
Medium temperature centigrade |
-40~230 centigrade(normal temperature),heat dissipation type 230~450centigrade(medium temperature),special orders 100~600centigrade |
Flow characteristics |
Straight line, in linear |
Adjustable range |
30:1 |
Power supply |
220VAC 50~60Hz |
Action |
Electric open(K)electric close(B) |
Valve body material |
PN
(MPa) |
0.6 |
|
Low-temperature:ZG1Cr18Ni9Ti |
1.6 |
Normal temperature:HT200 ZG230-450 |
4.0 |
|
Low-temperature:ZG1Cr18Ni9Ti |
Normal temperature:ZG230-450\ZG1Cr18Ni9Ti |
Medium temperature:ZG230-450\ZG1Cr18Ni9Ti |
6.4 |
Low-temperature:ZG1Cr18Ni9Ti |
Normal temperature:ZG230-450\ZG1Cr18Ni9Ti |
Medium temperature:ZG230-450\ZG1Cr18Ni9Ti |
Flange size |
Tube connection |
Cast steel is in accordance with JB77-59,Cast iron is in accordance with JB79-59 |
Flange type |
Flange sealing is in accordance with B77-59,flange of PN6.0 is slot type, cast steel flange is smooth type, cast iron flange is recessed type |
Valve core material |
1Cr18Ni9Ti |
Upper cover type |
General type(normal temperature),heat dissipation type(medium temperature),long neck type(low temperature) |
|
