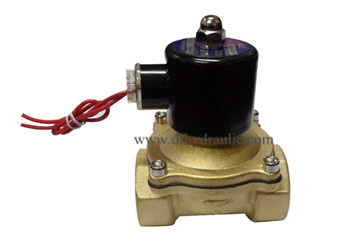

Specification
Model 2W-160-10 2W-160-15 2W-200-20 2W-250-25 2W-350-35 2W-400-40 2W-500-50
Working Medium Air, Water, Oil, Gas
Motion Pattern Direct Drive Type
Type Normal Close Type
Aperture of Flow Rate mm 16 20 25 35 40 50
CV Value 4.8 7.6 12 24 29 48
Joint Pipe Bore 3/8" 1/2" 3/4" 1"11/4" 11/2" 2"
Operation Fluid Viscosity 20CSTBelow
Working pressure Air: 0~1.0Mpa\ Water: 0~0.7Mpa\ Oil: 0~0.7Mpa
Max. Pressure Resistance 1.0Mpa
Operating Temperature -5~80 degree
Voltage Range: 10%
Material of Body Brass
Material of Oil Seal NBR or VITON
Model | 2W-025-06N | 2W-025-08N | 2W-040-08N | 2W-04010N | 2W-160-10N | 2W-160-15N | 2W-200-20N | 2W-250-25N | 2W-350-35 | 2W-400-40 | 2W-500-50 |
G Connection | 1/8" , 1/4" | 1/8" , 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" | 1¼ " | 1½ " | 2" |
Orifice Size | mm | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 |
Motion Pattern | Direct Action | Semi-direct Lift |
Cv Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
L | mm | 40.5 | 40.5 | 40.5 | 52.5 | 69 | 69 | 73 | 99 | 119 | 123 | 168 |
H | mm | 75 | 75 | 75 | 90 | 117 | 117 | 123.5 | 134.5 | 170 | 172 | 209 |
H1 | mm | 66 | 66 | 66 | 76 | 101 | 101 | 107 | 113 | 143 | 144 | 172 |
Medium temperature | -5 ÷ 80º C |
Pressure | bar | Normally closed : 0÷ 10; Normally Open: 0÷ 6 |
Power | AC: 220V~AC: 230V/50-60HZ 22VA; AC110 ~AC: 120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range: ± 10%, |
