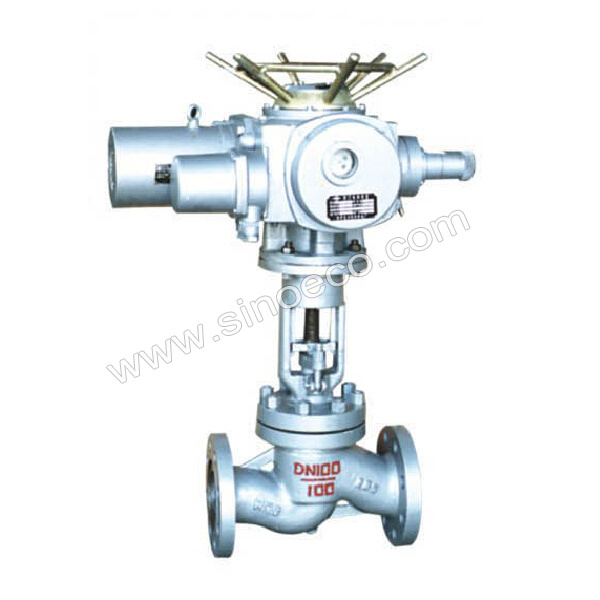

Electric temperature Globe Control Valve
Product Description:
Globe Valve is a common cut- off valve which used in the connection and cut off the pipeline medium. The simple structure make it easier to manufacture and maintain .
This valve product is comprised of valve body, disc, stem and packing. It offers various actuation options including electrical, manual and bevel gear .
This statethe globe valve design ensures zero leakage,seat can be overlaid with hard sealing material and it serves in various applications.Streamlined body ports have small flow friction and the disc floated freely to endure impact load and ensure the reliable service life.Seat can be overlaid with hard sealing material and to serve in variou applications.
Production Range :
Nominal Diameter: DN15~DN200
Nominal Pressure: PN10~PN16,
Design Standard: DIN3352/API600/BS1414
End Connection: Flange
Working temp: -45ºC~650ºC.
Medium: water, oil, gas and some corrosive liquid
DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
Rated Kv Valve | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 |
PN (Mpa) | 1.6 4 6.4 |
DKZ Actuator type | DKZ-4200 | DKZ-4300 | DKZ-5400 | DKZ-5500 | DKZ-5600 |
BELL Actuator type | BELL-A+Z64 |
Rated stroke (mm) | 16 | 25 | 40 | 60 | 100 |
Flow Characteristic | equal percentage flow characteristic linearity |
Action type | Electric power/off |
Temperature | Normal temperature:-20~200 °C Fin type: -60~450 °C |
Ningbo Free Trade Zone ECO International Co., Ltd is a professional supplier of meters in China since year 2000.
We not only supply quality meters and matching accessories, but also join to develop and improve products. We are a team with professional instrument/meter technology knowledge.
Our Professional and TOP products are:
---Water supply system: Water meter with ISO9001 &1SO4064, brass/stainless/UPVC valves, pipes &pipefittings, etc.
---Electric supply system: Electric meter with KEMA, transformer, etc.
---Gas supply system: Gas meter with EN1359 &Atex Report, valves, etc.
---Heat system: Heat meter, radiator, valves. Et
Other products:
---Pumps
---Auto Parts, Car Accessories
---PU Tube, PVC Tube, PO tube
---Caster Wheels
For all of these products, we are cooperating with specific professional ISO 9001 manufacturers. We assure strictly quality controlling, considerate service & competitive prices.
Your enquires are warmly welcome and will receive our immediate attention!
