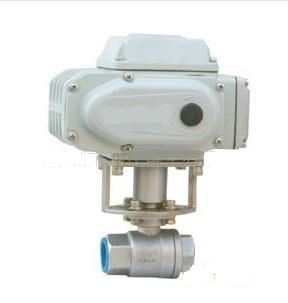

Material: Stainless steel Brand: TOYI
Type: DN15--DN80 Connection form: Screw thread
Style (channel position): Straight through type Drive Method: Electron
Purpose: Adjustment
The matched motors are as follows:
1. Torque: 50 N*m\100N*m\200 N*m\400 N*m\1000 N*m\2000 N*m (make your decision when you placing your order );
2. Optional ball valve: DN15-300, optional butterfly valve: DN50-600 (make your decision when you placing your order);
3. Power supply: 220V AC 50/60Hz (please consult the relevant departments when there are special circumstances)
4. Ambient temperature: -30degree_-60degree; Waterproof grade: Equal to IP67;
5. Manual operation: Randomly attached manual handle; Electrical, mechanical double spacing;
6. Position measurement: The passive contact signal will output if they are in place.
7. Box body material: Die casting aluminum alloy; Service entrance: PF1/2 incoming line lock;
8. Corner 0-90 degrees; Please consult the relevant departments when there are special circumstances;
9. The journey 30 / 60 / 120 seconds are optional;
10. Overheat protection;
11. By an external power switching or an external signal inputting, you can control the opening position, closing position and the middle position.
It can be used in the industries of food, beverage and so on. The valve body is made of 316L stainless steel.
1. Small and light;
2. The imported key components are high reliability;
3. Real materials to ensure long life;
4. Valves are made from stainless steel with high-grade appearance.
