Product Description
Electro-thermal Actuator Technical Parameter Voltage:230v(220v),110V,AC24V

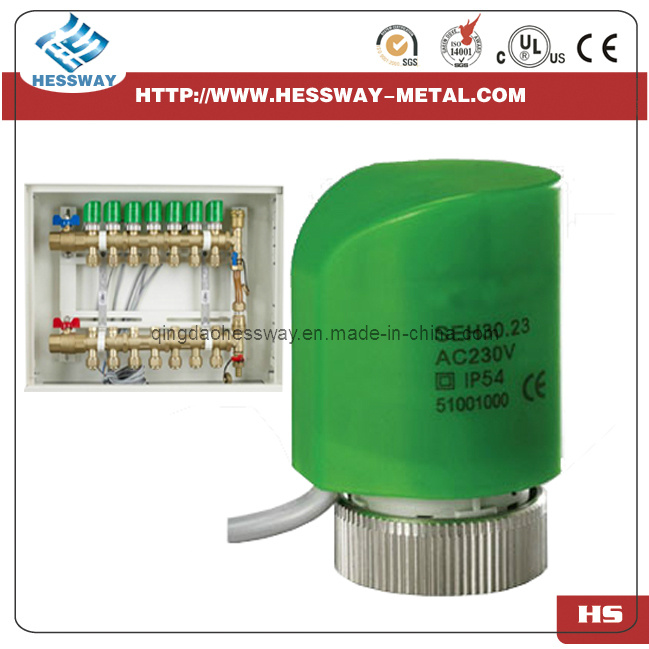

HS-Q38 Series Electro-thermal Actuator is Branch manifold valves, small valves, valve homeostasis electric actuators, electric control valve driving part.designed to control the open/close of small valve or Actuating control of PDM of chiller water or hot water for air-conditioning system so as to control the closed loop doublely and steadily.Branch manifold valves, small valves, valve homeostasis electric actuators, electric control valve driving part.
Product Characteristics
1.Paraffin Wax Thurster, PTC heating.
2.Paraffin propulsion elements, driven by PTC heating
3.With spring return function after power valve closed or open (normally open and normally-off type two)
4.Work run without noise
5.Position, or an indication of the degree of opening stroke Nuts installation, simple, fast and easy removal
Scope of application
Fitted on manifolds or small valves for the control of warm-water (floor) heating systems used in Commercial buildings, Residential buildings, Light industrial buildings Etc.
| Power supply | 230v(220v),110V,AC24V | Ambient temperature | -5°C~60°C |
| Power consumption | 2W | Stroke | 3mm |
| Force | 110N | Running time | Open-3mins, close-5mins |
| Protect rank | IP54 | Cable Length | 1000mm |
| Housing material | Fire-proof PC | Valve interface | Cap nut M30*1.5mm |
