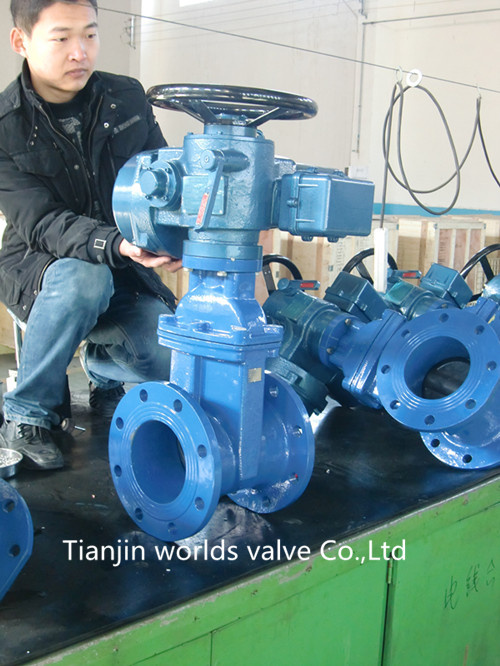

Electrical Gate Valve

Electrical Gate Valve
Price: US $ 22/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Non-rising Stem Resilient Seated Gate Valve
Standard:
Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598

Design characters:
1. Equipment used in cutting off medium in pipeline.
2. Suitable for hand wheel, gear operators or electric actuators.
Performance:
Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):
1.0, 1.6, 2.0, 2.5
Testing pressure (water) PS (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure

Non-rising stem resilient seated gate valve are widely used in water supply and drainage, hydre or thermal power, building project as well as industrial water system, such as steel and petrochemical.
1. Equipment used in cutting off medium in pipeline.
2. Suitalbe for hand wheel, gear operators or electric actuators.
Detailed Description:
SeriesNon-rising stem resilient seated gate valve
Size:DN40-DN600
Design standard:GB/T 12232-2005 DIN3352, EN593, MSS SP-67
Pressure standard:GB/T 13927-1992, API598
Face to face:DIN3202 F4, F5, BS5155,BS5163
Flange standard:DIN2532, DIN2533
Body:CI/DI/WCB/ALB/CF8/CF8M
Disc:DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem:SS416/SS304/SS431/17-4PH
Seat:NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDMPTFE
Suitable temperature:-10~90
Medium:Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Prod Model: Z45X-10/16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour: Blue
Standard Or Nonstandard: Standard
Material Name: Ductile Cast Iron
Power: Gearbox
Brand Name: Wds
Media: Water, Oil
Connection Form: Flange
Material: Cast Iron
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.

WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
