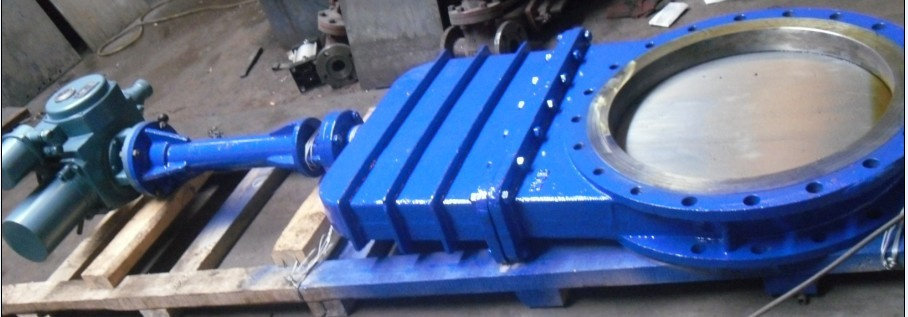

1. Electrically Actuated Knife Gate Valves Pressure rating and size:
* PN6 to PN25, 150LB/300LB
* 2"~80"
* DN50 to DN2,000
2 Electrically Actuated Knife Gate Valves .Material:
* Cast iron: GG20, GG25
* Ductile iron: GGG40, GGG50
* Cast steel: A216 WCB
* Stainless steel: CF8,CF8M,CF3,CF3M,CF3MN,CN7M
3. Electrically Actuated Knife Gate Valves Operator:
* Manual,Bevel Gear,Pneumatic Cylinder,Hydraulic,Chain Wheel etc.
4. Electrically Actuated Knife Gate Valves Features:
* Face to face: ASME B16.10/ISO 5752
* Flanged ends: ASME B16.5/ASME B16.47/ISO7005-1/API 605/BS 3293/DIN
* Test: API 598/API 6D
* Seat: NBR, EPDM, Rubber, Viton, PTFE, metal to metal
* Fabrication: rising stem/non-rising stem
* Unidirection/ bi-directional
5. Electrically Actuated Knife Gate Valves General Applications:
* Mining
* Power plant
* Pulp and paper
* Alumina
* Chemical
* Cement
6.The main material to choose from :
Parts | Material |
Body | C.I, D.I, WCB,CF8,CF8M,CF3,CF3M,CF3MN,CN7M |
Knife | F304,F316 |
Stem | F6a,304,316 |
Seat | F304,F316,PTFE,RTPFE,VITON,NYLON,NBR |
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
