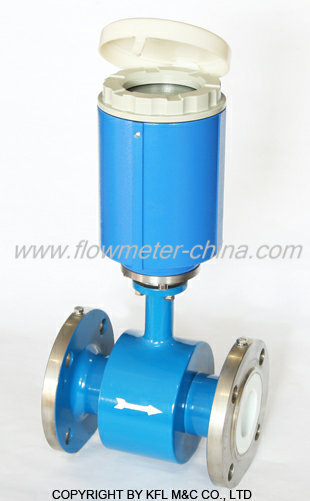

Product Feature
Virtually No Pressure Loss
There is no moving part to down the pressure.
Corrosion protection, abrasion resistant
The surface was painting with PU coating
High accuracy, Stable performance
The struction is test strictly to ensure the high accuracy and stability
High level of anti-vibration and anti-jamming, wide measuring dimensions
Polyurethane was injected to the sensor boy to ensure the sensor has good capability
Multi-Output Interface4~20mA, Pulse, Alarm Outputs, RS-485 and Modbus Communication
Technical data:
Nominal Meter Size: 10 to 200mm
Liquid Pressure (MPa): 1.0, 1.6, 2.5, 4.0, 16, 25, 35, 42
Accuracy: ± 0.5%, ± 1% (upon req. )
Minimum Conductivity: 5μ S/cm
Electrode Material: SST 316L (standard), Hastelloy, Tantalun, titanium, Tungsten Carbide (upon req. )
Fluid Temperature: -25 to 65 (-13 to 149); -25 to 140(-13 to 284)(opt. )
Liner: CR, FEP, PTFE, PFA
Relative Humidity≤ 85%
Ambient Temperature:
-30 to 60 (-22 to 140)
Current Output:
0 to 10mA or 4 to 20mA
Frequency Output: 0 to 5000Hz with photoelectric isolation
Pulse Output: Adjustable from 0.001 to 1000 LTR/Pulse
Alarm Output:
Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation
Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation
Communications:
RS-232 without galvanic isolation
RS-485 with galvanic isolation, MODBUS.
Supply Power:
85 to 250VAC (45 to 63Hz)
16 to 36VDC
Power: S10W/AC, S7.5W/DC
Established in 2002, Wenzhou Kaflon Measuring And Controlling Instruments Co., Ltd. is a professional manufacturer of flowmeter with our R&D department. Our products include KFL-VT Vortex Flowmeters, KFL-DC Electromagnetic Flowmeters, KFL-CD Electromagnetic Vortex Flowmeters, KFL Pressure Transducers and KFL Flow Calculators.
Kaflon's People are always trying to provide advanced products for our customers, and possess advanced production equipment and calibrating system. Argon-arc welders and CNC machines ensure our products with superior quality and long service life. Flow calibrating system provides much higher accuracy. With an annual capacity of 3, 000 sets of Electromagnetic Flowmeters and 2, 000 sets of Vortex Flowmeters, our products have achieved well-recognition in Chinese market.
With more than eight years' development, we have gained high reputation from our customers. We staff 46 employees, 70% of whom are engineers and graduates.
In 2005, we attained ISO9001: 2000 Quality Management System Certification. In 2006, we attained AAA Certification.
Besides, we have been engaged in export business for almost three years. Our products are well-known in the Middle East, Southeast Asia, Africa, America and Europe. We have also cooperated with many leading companies. With the tenet of "more stable quality, much higher accuracy and on-time delivery", we have received great praise from overseas customers.
We are looking forward to establishing business relationships with business friends and partners from all over the world.
