Descriptions

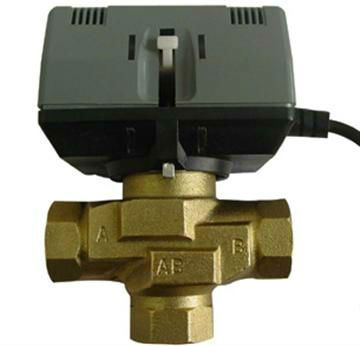

The AE-D series 2-position hydronic valves are used in domestic and small commercial applications to control the flow of hot and/or cold water.
These 3-Way valves are designed for ON-OFF control and can be piped for either diverting or mixing valve applications for domestic hot water service, in central heating and/or cooling systems; Or for individual room temperature control (fan coil, radiator or convector applications).
Technical Specifications
Power supply: 220VAC (or 12V/24V/110V are available on request)
Power consumption: 5VA (only during valve position change)
Norminal pressure: 1.6Mpa
Allowed pressure differential: 1.0Mpa
Media: Hot or chilled water
Opening and closing time: 16S 16S
Media temperature: 1-95° C
Ambient temperature: 0-65° C
Connection: Inner screw (or customerized)
Protection Class: IP40
Approval: CE
