Emptying Guide Deluge Forged Steel Valve (DTV-Z003)
| Price: |
US $ 8-200/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Suitable:
Reduced Port or Full Port
Structure:B.B or W.B; OS&Y
Gasket: Stainless + Flexible Graphite
One end is Flange,another end is valve seat for the replaceable pipe cap.
Design and manufacture:AP1602&ANSIB16.34
Flange Size:ANSI B16.5
Outside thread end size:GB/T 307-1987
Inspection and Testing:API 598
Most Part Marterial:A105 .LF2.F5.F11.F22.F304.F304L.F316.F316L

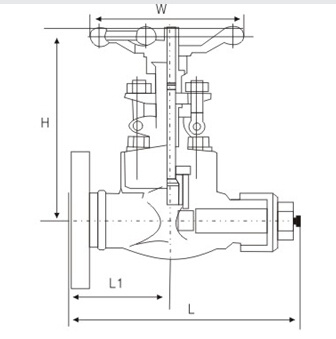

| Dimensions |
|
|
|
|
|
|
| Norminal diameter | Reduced Port | Mm(in) | 15(1/2) | 20(3/4) | 25(1) | 32(1 1/4) | 40(1 1/2) |
| Full Port | mm | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1 1/4) |
| d |
| 10 | 12.7 | 18 | 23 | 28.5 |
| L | CL150 | mm | 60 | 65 | 70 | 75 | 85 |
| CL300 | mm | 70 | 76 | 82.5 | 89 | 95 |
| CL600 | mm | 82.5 | 95 | 108 | 114.5 | 120.5 |
| H (open) | ≥-60ºC | mm | 150 | 157 | 179 | 200 | 213 |
| ≥-100ºC | mm | 159 | 170 | 193 | 216 | 224 |
| <-100ºC | mm | 172 | 190 | 220 | 240 | 250 |
| H(open) | mm | 166 | 169 | 193 | 230 | 246 |
| W | mm | 100 | 100 | 125 | 160 | 160 |
Exhibition
Workshop(CNC Machinery)
Advantages:
High Qualit
Competitive price
Lead time is fast
OEM provide
| Prod Model: |
DVT-Z003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn10mm-Dn1050mm |
| Press: |
Pn1.6MPa-Pn42MPa |
| Material: |
Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
ZHEJIANG DARTON VALVE Co., Ltd. is located in China valve city -- - longwan yaoxi xiongxin industrial zone, is a professional production of various specifications of the forged steel valve products of new technology enterprise, enterprise economic and technical force is abundant, die forging, heat treatment, fully automatic CNC machining, welding, assembly, testing and other advanced equipment, the integration of large-scale production, with inspection of material physical and chemical laboratory and CAD auxiliary design, structure more reasonable, to ensure the service life of the product and quality.
The companys products are: Forged steel gate valve, globe valve, check valve, ball valve, throttle valve, bellows valve series, such as: Nominal diameter: DN10-1050mm (3/8"~42") nominal pressure: PN1.6~ 42MPa (150~ 2500Lb). Material: A105, LF2, F5, F11, 304, 304L, 316, 316L etc., design standard: API, ANSI, DIN, JIS, GB, BS, etc. Widely used in petroleum, chemical industry, paper making, shipbuilding, electric power, machinery and other industries. The products sell well both at home and abroad, is deep the majority of users trust and praise.
We are in the pursuit of excellence quality at the same time, update processing equipment and detection means, in order to adapt to the large quantities, specialization of production, and strive to improve its performance to the optimal, we aim at the international advanced technology, and strive to synchronize with. The company will be based on high quality products, good reputation, perfect service and reasonable prices to expand domestic and foreign markets, in the fierce market competition seek survival and development. And contribute to Chinas valve industry development and localization of progress. Sincerely hope that with the vast number of old and new users to establish mutually beneficial "win-win" relations of cooperation, hand in hand, create brilliance.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
