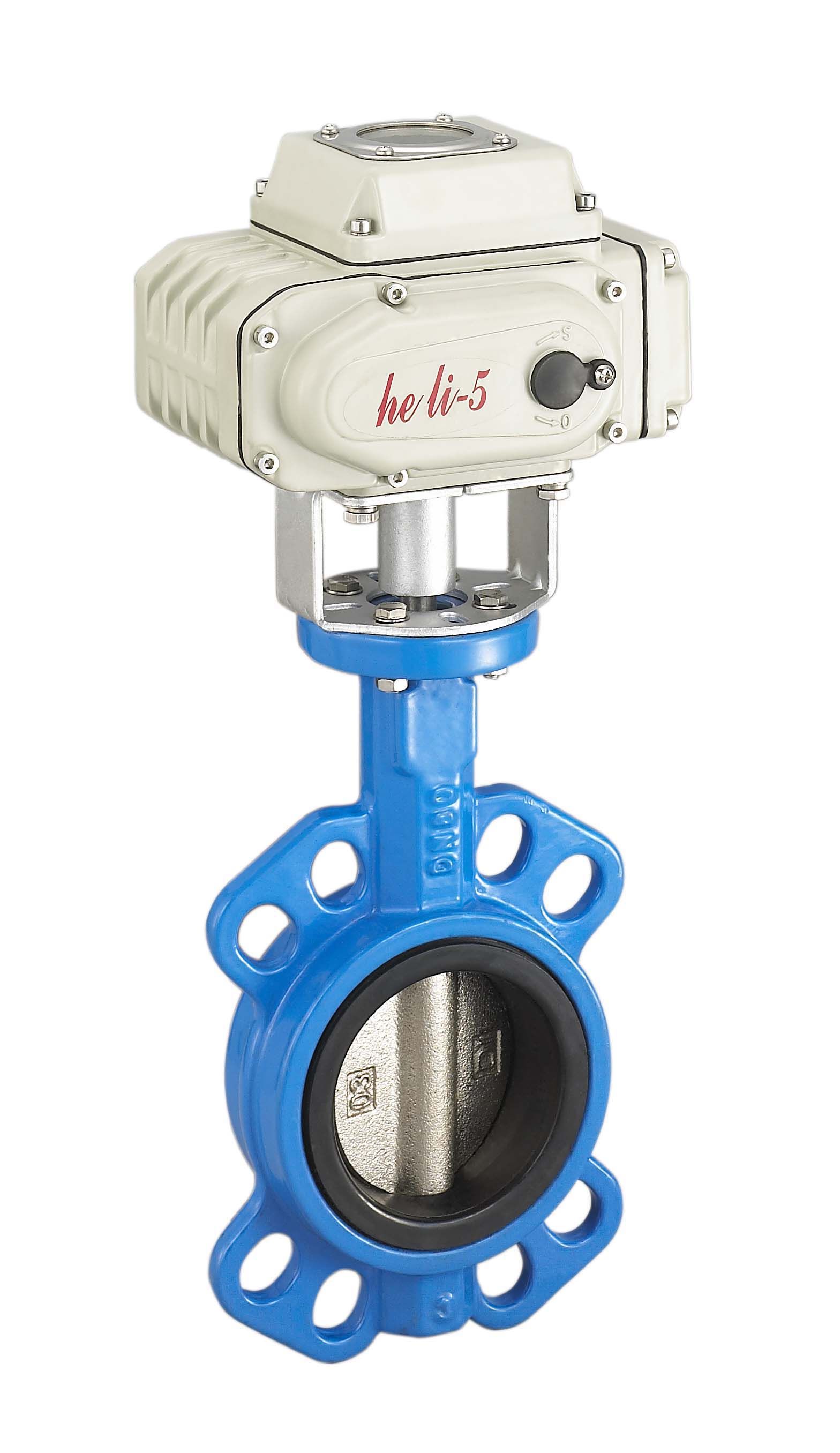

EPDM Wafer Electric Actuator Butterfly Valve

EPDM Wafer Electric Actuator Butterfly Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Quick Details
Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: Low Pressure
Power: Electromotion
Material: WCB
Temperature of Media: Low Temperature
Media: Gas
Place of Origin: Zhejiang, China (Mainland)
Model Number: HL-10
Brand Name: HELI
Packaging & Delivery
Packaging Details: Foam package inside, Carton outside
Delivery Detail: Within 7 days after receiving payment
          Model

Performance
                     HL-10
VoltageDC12VDC24VDC220VAC24VAC110VAC220VAC380V
Motor Power                 23W,40W
Rated current4.8A2.4A0.32A3A0.64A0.32A0.19A
Output Torque 100N.m      50N.m/60N.m/100N.m
Action Time    10S        13S/15S/20S/30S
Rotary angle                 0~90°
Weight                 4kg
Voltage-with standing valve       500VAC/1minute1500VAC/1minute
Insulated resistance       100 MΩ/300VDC      100 MΩ/500VDC
Protection Class                        IP67
Surrounding temperature  -25°C~60°C(The other temperatures can be customized)
Installation angle                     Any angle
Case material              Aluminium-casting components
Optional function             Overload protection function, Heater

Prod Model: HL-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Wafer
Work Pressure: Low Pressure (',Pn<1.6mpa)
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Normal Temperature (',-40??C
Application: Industrial Usage
Material Of Seal Surface: Soft Sealed
Wenzhou Heli Automatic Meter Co., Ltd. (HL) is a High-tech enterprises specialized in manufacturing electric actuator, pneumatic actuator, rotary air damper actuator, integrating scientific research, production, distribution and service.

Founded in 1999, covers an areas of 13118 square meters. HELI company consistently pays attention to product quality and all of HELI products have passed the CE certification, the test of Shanghai industrial Automatic Instrument Institute with every performance and index qualified, etc.

HELI will bring you much more convenience. By consistently keeping the management conception of taking market as guide, serving by quality and credit, and developing by technology and innovation. Our company guarantees to realize the goal of double-win with user's benefits as precondition. In the future, HELI people will actively take the challenge with excellent quality, scientific management and perfect service.

Sincerely welcome friends all over the world to come here for negotiation and cooperation.
