(EVR series) Danfoss Solenoid Valves & Coils for ac,cold room
Product Description
EVR (NC) is a normally closed, direct or servo operated solenoid valve for liquid, suction and hot gas lines with fluorinated refrigerants. EVR valves are supplied complete or as separate components, i.e. valve body, coil and flanges.
Product Features
- Refrigerants: R22/R407C, R404A/R507, R410A, R134a, R407A, R23. For other refrigerants, please contact Danfoss. Temperature of medium: -40 - +105°C (10 W / 12 W coil) Max. 130°C during defrosting. Min. opening differential pressure, EVR 2-3: 0.0 bar, EVR 6-22: 0.05 bar, EVR 25-32: 0.20 bar.

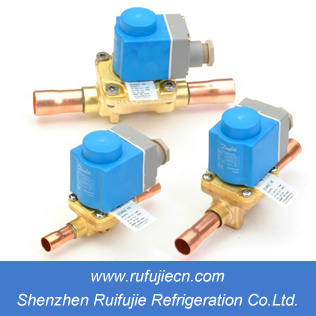

(EVR series) Danfoss Solenoid Valves & Coils
Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
Supplied both normally closed (NC) and normally open (NO) with de-energized coil
Wide choice of coils for a. C. And d. C.
Suitable for all fluorinated refrigerants
Designed for media temperatures up to105 C
MOPD up to 25 bar with 12 W coil
Flare connections up to 5/8 in.
Solder connections up to 2 1/8 in.
Extended ends for soldering make installation easy It is not necessary to dismantle the valve when soldering in.
EVR are also available with flange connections
| Brand: | Danfoss |
| Colour: | - |
| Connection Size: | - |
| Connection Type: | - |
| Length (M): | - |
| Material Type: | - |
| Model Number: | EVR Series |
| Nominal Running Current (A): | - |
| Operating Temperature: | - |
| Pressure: | - |
| Voltage: | - |
| Warranty: | 1 Year |
| Phase: | - |
| Refrigerant Suitability: | R22, R407C, R404A, R507, R410A, R134a, R407A, R23 |
| Valve Connections: |
|
| Defrost: | - |
| Evaporator Fans: | - |
| Cable Length (mtr): | - |
| Solenoid valve & Coil |
|
| Code | Type |
|
| EVR |
|
|
| 032F8056 | Solenoid valve EVR 2 | US$35.5 |
| 032F1201 | Solenoid valve EVR 2 | US$35.5 |
| 032F1202 | Solenoid valve EVR 2 | US$35.5 |
| 032F8116 | Solenoid valve EVR 3 | US$33.3 |
| 032F1204 | Solenoid valve EVR 3 | US$33.3 |
| 032F8107 | Solenoid valve EVR 3 | US$33.3 |
| 032F1206 | Solenoid valve EVR 3 | US$33.3 |
| 032F1207 | Solenoid valve EVR 3 | US$33.3 |
| 032F1208 | Solenoid valve EVR 3 | US$33.3 |
| 032F1209 | Solenoid valve EVR 6 | US$46.1 |
| 032F8072 | Solenoid valve EVR 6 | US$46.1 |
| 032F1212 | Solenoid valve EVR 6 | US$46.1 |
| 032F1213 | Solenoid valve EVR 6 | US$46.1 |
| 032F8079 | Solenoid valve EVR 6 | US$51.0 |
| 032F1236 | Solenoid valve EVR 6 | US$51.0 |
| 032F7122 | Solenoid valve EVR 8 | US$67.5 |
| 032F1214 | Solenoid valve EVR 10 | US$71.9 |
| 032F8095 | Solenoid valve EVR 10 | US$71.9 |
| 032F1217 | Solenoid valve EVR 10 | US$71.9 |
| 032F1218 | Solenoid valve EVR 10 | US$71.9 |
| 032F8098 | Solenoid valve EVR 10 | US$71.9 |
| 032F8101 | Solenoid valve EVR 15 | US$101.9 |
| 032F1227 | Solenoid valve EVR 15 | US$116.1 |
| 032F1228 | Solenoid valve EVR 15 | US$101.9 |
| 032F8100 | Solenoid valve EVR 15 | US$116.1 |
| 032F1240 | Solenoid valve EVR 20 | US$149.7 |
| 032F1244 | Solenoid valve EVR 20 | US$149.7 |
| 032F1245 | Solenoid valve EVR 20 | US$149.7 |
| 032F1264 | Solenoid valve EVR 20 | US$149.7 |
| 032F1254 | Solenoid valve EVR 20 | US$168.6 |
| 032F1274 | Solenoid valve EVR 20 | US$168.6 |
| 032F3267 | Solenoid valve EVR 22 | US$190.4 |
| 032F2200 | Solenoid valve EVR 25 | US$244.1 |
| 032F2201 | Solenoid valve EVR 25 | US$203.4 |
| 032F2205 | Solenoid valve EVR 25 | US$244.1 |
| 032F2206 | Solenoid valve EVR 25 | US$203.4 |
| 032F2207 | Solenoid valve EVR 25 | US$244.1 |
| 032F2208 | Solenoid valve EVR 25 | US$203.4 |
| 042H1103 | Solenoid valve EVR 32 | US$337.7 |
| 042H1104 | Solenoid valve EVR 32 | US$305.1 |
| 042H1105 | Solenoid valve EVR 32 | US$337.7 |
| 042H1106 | Solenoid valve EVR 32 | US$305.1 |
| 042H1107 | Solenoid valve EVR 32 | US$425.1 |
| 042H1108 | Solenoid valve EVR 32 | US$425.1 |
| 042H1109 | Solenoid valve EVR 40 | US$394.7 |
| 042H1110 | Solenoid valve EVR 40 | US$356.1 |
| 042H1111 | Solenoid valve EVR 40 | US$394.7 |
| 042H1112 | Solenoid valve EVR 40 | US$356.1 |
| 042H1113 | Solenoid valve EVR 40 | US$394.7 |
| 042H1114 | Solenoid valve EVR 40 | US$356.1 |
| 032F8085 | Solenoid valve EVR 6 NO | US$83.3 |
| 032F1290 | Solenoid valve EVR 6 NO | US$83.3 |
| 032F1295 | Solenoid valve EVR 6 NO | US$83.3 |
| 14() |
|
|
|
|
|
|
|
| Solenoid valve & Coil |
|
|
|
|
| 032F1291 | Solenoid valve EVR 10 NO | US$104.7 |
| 032F8090 | Solenoid valve EVR 10 NO | US$104.7 |
| 032F1296 | Solenoid valve EVR 10 NO | US$104.7 |
| 032F8099 | Solenoid valve EVR 15 NO | US$154.3 |
| 032F1299 | Solenoid valve EVR 15 NO | US$154.3 |
| 032F3270 | Solenoid valve EVR 15 NO | US$154.3 |
| 032F1260 | Solenoid valve EVR 20 NO | US$210.0 |
| 032F1269 | Solenoid valve EVR 20 NO | US$210.0 |
| 032F1279 | Solenoid valve EVR 20 NO | US$210.0 |
| 032F3268 | Solenoid valve EVR 22 NO | US$210.0 |
| 032F1224 | EVR 15 Solenoid valve without flange | US$101.9 |
| 032F1225 | Solenoid valve EVR 15 | US$101.9 |
| 032F1234 | EVR 15 Solenoid valve without flange | US$116.1 |
| 032F1243 | EVR 20 Solenoid valve without flange | US$142.7 |
| 032F1253 | EVR 20 Solenoid valve without flange | US$161.5 |
| 032F1263 | EVR 20 Solenoid valve without flange | US$142.7 |
| 032F1273 | EVR 20 Solenoid valve without flange | US$161.5 |
| 018F6257 | AC coil 24V50HZ | US$23.9 |
| 018F6258 | AC coil 42V50HZ | US$23.9 |
| 018F6259 | AC coil 48V50HZ | US$23.9 |
| 018F6261 | AC coil 115V50HZ | US$23.9 |
| 018F6251 | AC coil 220V50HZ | US$23.9 |
| 018F6252 | AC coil 240V50HZ | US$23.9 |
| 018F6253 | AC coil 380V50HZ | US$23.9 |
| 018F6254 | AC coil 420V50HZ | US$23.9 |
| 018F6265 | AC coil 24V60HZ | US$23.9 |
| 018F6260 | AC coil 115V60HZ | US$23.9 |
| 018F6264 | AC coil 220V60HZ | US$23.9 |
| 018F6263 | AC coil 240V60HZ | US$23.9 |
| 018F6280 | AC coil 110V50/60HZ | US$23.9 |
| 018F6282 | AC coil 220V50/60HZ | US$23.9 |
| 018F6706 | AC coil 12V50HZ 10W | US$27.5 |
| 018F6707 | AC coil 24V50HZ 10W | US$27.5 |
| 018F6708 | AC coil 42V50HZ 10W | US$27.5 |
| 018F6709 | AC coil 48V50HZ 10W | US$27.5 |
| 018F6711 | AC coil 115V50HZ 10W | US$27.5 |
| 018F6701 | AC coil 220/230V 10W 50HZ | US$22.7 |
| 018F6702 | AC coil 240V50HZ 10W with junction box | US$27.5 |
| 018F6703 | AC coil 380/400V50HZ 10W | US$27.5 |
| 018F6704 | AC coil 420V50HZ | US$39.6 |
| 018F6715 | AC coil 24V60HZ | US$27.5 |
| 018F6710 | AC coil 115V60HZ 10W | US$27.5 |
| 018F6714 | AC coil 220V60HZ | US$27.5 |
| 018F6713 | AC coil 240V/60HZ 10W | US$27.5 |
| 018F6730 | AC coil 110V50/60HZ | US$27.5 |
| 018F6732 | AC coil 220V50/60HZ | US$27.5 |
| 018F6181 | AC coil 12V50HZ 10W | US$20.3 |
| 018F6182 | AC coil 24V50HZ 10W | US$20.3 |
| 018F6183 | AC coil 42V50HZ 10W | US$20.3 |
| 018F6184 | AC coil 48V50HZ 10W | US$20.3 |
| 018F6186 | AC coil 115V50HZ 10W | US$20.3 |
| 018F6176 | AC coil 220/230V50HZ 10W | US$20.3 |
| 018F6177 | AC coil 240V50HZ 10W | US$20.3 |
| 018F6178 | AC coil 380/400V 50HZ 10W with DIN plugs and protective cover | US$20.3 |
