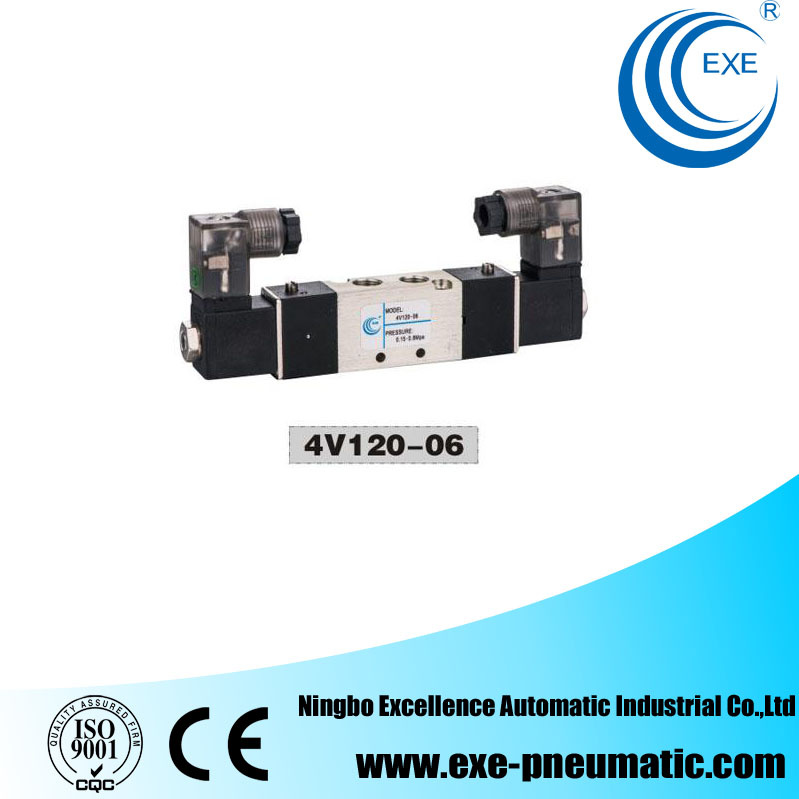

Exe 5/2 Way Aluminum Pneumatic Double Head Solenoid Valve 4V120-06
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description
Model: 100 Series Solenoid Valve, Pneumatic Control Valve 4V120-06Effective area: 30mm2(CV=1.68)Port size: Air inlet=Air outlet=Exhaust=G1/8Fluid: 40 micron filtered airOperation: Inside pilot typeOperating pressure: 0.15-0.8MPaMax. Proof pressure: 1.2MPaTemperature: 5~50 CAllowable voltage: 10% of rated voltagePower consumption: AC: 2.5VA DC: 2.5WCoil insulation &protection grade Class: F. IP65Electrical entry: Lead wire or connectorHigest action frequency: 5 cycles/secondShortest excitation time: 0.05 second Features1. Pilot-oriented mode: optional for internal or external; 2. Structure in sliding column mode: good tightness and sensitive reaction; 3. Three position solenoid valves have three kinds of central function for your choice; 4. Double control solenoid valves have memory function; 5. Internal hole adopts special processing technology which has little attrition friction, low start pressure andong service life; 6. No need to add oil for lubrication; 7. Affiliated manual devices are equipped to facilitate installation and debugging; 8. It is available to form integrated valve group with the base to save installation space; 9. Several standard voltage grades are optional. | Model | 4V110-06 | 4V210-08 | 4V310-10 | 4V410-15 |
| Working Medium | 40 Micron filtered air |
| Motion Pattern | Inner ggide type |
| The Position | Two-position five-port |
| Effetive Area | 12mm 2 (CV=0.67) | 16mm 2 (CV=0.78) | 30mm 2 (CV=1.68) | 50mm 2 (CV=2.79) |
| Joint Pipe Bore | Inlet=outlet=exhaust=G1/8 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/4 | Inlet=outlet=exhaust=G1/2 |
| Glide | Have no usefor |
| Working-Pressure | 1.7-7.0kg/cm 2 (24-100psi) |
| Max. Pressure-Resistce | 10.5kg/cm2(150psi) |
| Operating Temperature | 5-50 |
| Voltage Range | ± 10% |
| Power Consumption | AC: 1.3VA DC: 1.5W |
| Insulation | F Class |
| Protect | IP65(DIN40050) |
| Wiring Form | Direct outlet or terminal type |
| Highest Action Frequency | 5 cycle per sencond |
| Shortest Excitation | 0.05 second |
| Weight | 120g | 200g | 310g | 590g |
| Prod Model: |
Solenoid Valve 4V120-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008 |
| Thread Standard: |
NPT, BSPT, Bsp |
| Export Markets: |
Globe |
| Votage: |
AC110V 220V DC12V 24V |
| Fluid: |
Air, Water, Gas, Oil |
| Function: |
Change The Flow Direction |
| Control: |
Solenoid Vlave |
| Port Size: |
1/4" |
| Coil: |
Double Head |
| Lead Time: |
15-20 Days |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Pilot Membrane Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
