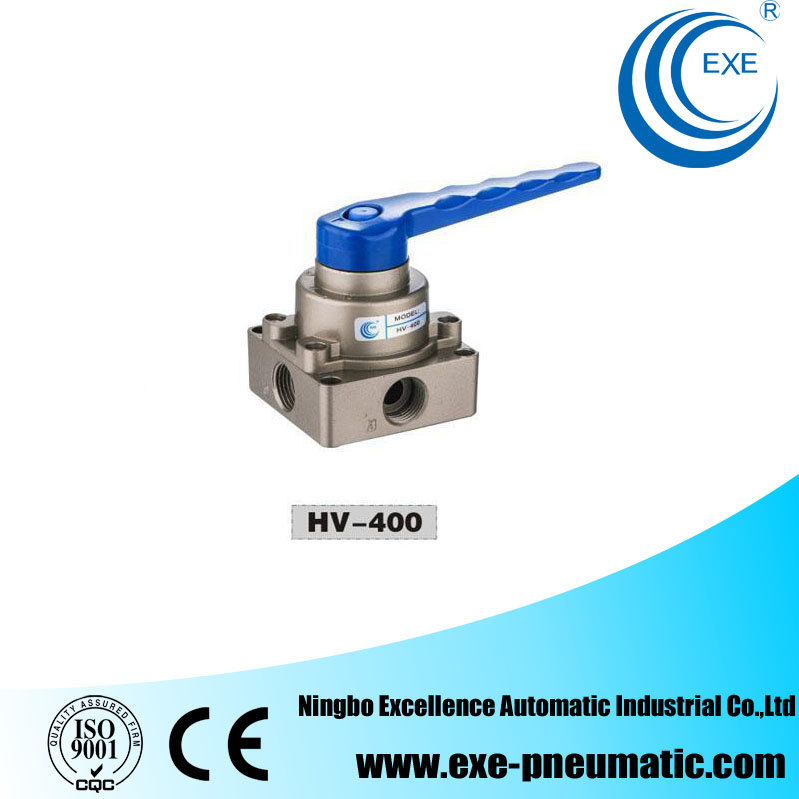

Exe Hv Series Pneumatic Hand-Switching Valve Hv400
Price: |
US $ 4/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description HV series is a kind of manual valve and there are different series. The pipe connection type of 200 series is G1/4, 300 series is G3/8, 400 series is G1/2. There are two kinds of connection type, including pipe connection type and plate connection typeHand-Switching valve is a manual three-position and four way valve with hard seal or soft seal structure. It can control airflow direction, and drive pneumatic application with little operative force, excellent seal and long life. Model | HV400-02 | HV400-03 | HV400-04 | K34R8-L6 | K34R8-L8 |
Port size | G1/4" | G3/8" | G1/2" | G1/8" | G1/4" |
Effective Cross Section Area | 30mm 2 (CV=1.68) | 18mm 2 (CV=1.00) |
Working Medium | Air(to be filtered by 40μ filter element) |
Working Pressure | 0~0.8MPa |
Temperature | 0~60 C |
Prod Model: |
Pneumatic Hand-Switching Valve HV400 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
ISO9001:2008,CE,RoHS |
Thread Standard: |
NPT, BSPT, Bsp |
Export Markets: |
Global |
Voltage: |
AC110V 220V DC12V 24V |
Fluid: |
Air, Water, Gas, Oil |
Function: |
Change The Flow Direction |
Mark: |
Exe |
Port Size: |
1/8",1/4" |
Way: |
3 Position 4 Way |
Lead Time: |
15-20 Days |
Connection Form: |
Thread |
Valve Structure: |
Direct-Acting Piston Structure |
Application: |
Household Usage |
Type: |
Hand Draw |
Material: |
Aluminum Alloy |
Power Supply: |
AC/DC Solenoid Valve |

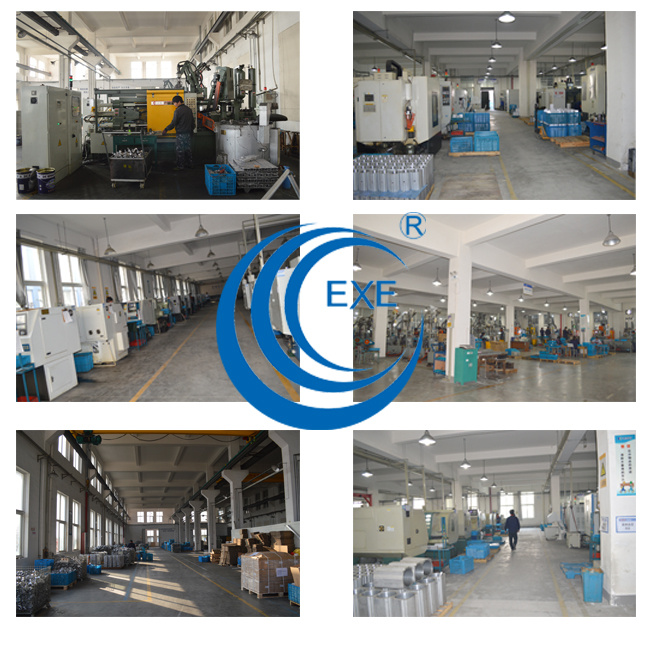

Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.
This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.
Our goal is supplying the best qualtiy and service through advanced technology to customers.
Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
