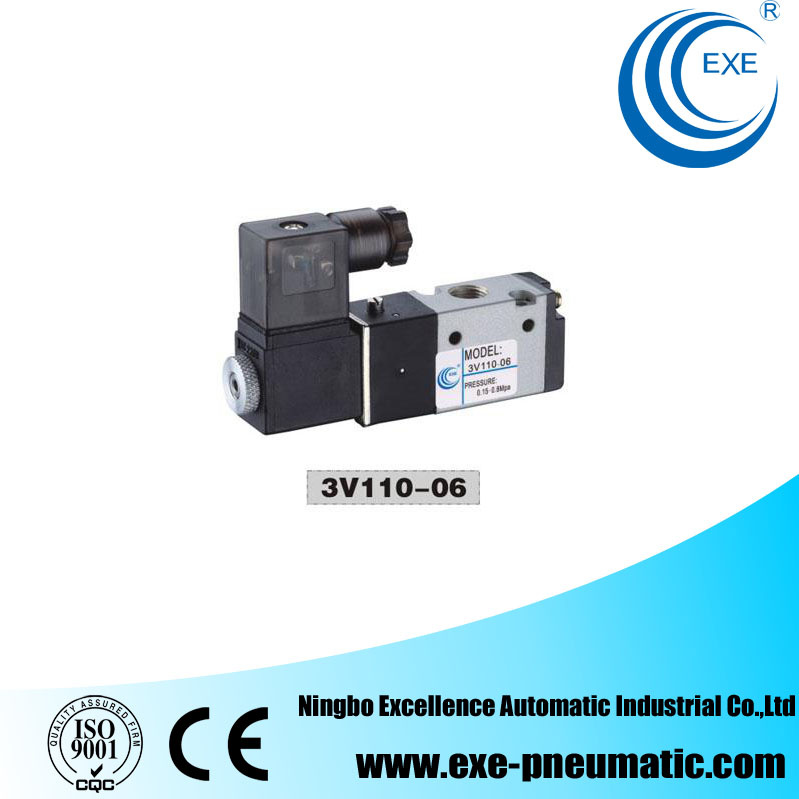

Exe Pneumatic Solenoid Valve 3V110-06 AC220V

Exe Pneumatic Solenoid Valve 3V110-06 AC220V
Price: US $ 3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union

Product Description

100 Series Solenoid Valve, Pneumatic Control Valve
1.3/2 way valve
2. Long lifecycle
3. Coils made by hands
Model: 100 Series Solenoid Valve, Pneumatic Control Valve 3V110-06
Position and way NO.: 2/3 way
Effective area: 30mm2(CV=1.68)
Port size: Air inlet=Air outlet=Exhaust=G1/8
Fluid: 40 micron filtered air
Operation: Inside pilot type
Operating pressure: 0.15-0.8MPa
Max. Proof pressure: 1.2MPa
Temperature: 5~50 C
Allowable voltage:10% of rated voltage
Power consumption: AC: 2.5VA DC: 2.5W
Coil insulation &protection grade Class: F. IP65
Electrical entry: Lead wire or connector
Higest action frequency: 5 cycles/second
Shortest excitation time: 0.05 second

Features

Integral slot piston structure
Process valve hole with special high precision finishing process
Beautiful appearance
Good reverser
Reliable performance
Seal wear can automatic compensate



Model3V110-06
Position and Way No.Two-position Three-way
Effective Sectional Area12 mm²
Working Medium40 Micron Filtered Air
Joint Pipe BoreAir Inlet=Air Outlet=Exhaust=1/8"NPT or PT
Motion PatternInner Guide Type
Working-pressure0.15~0.8Mpa
Max.Pressure Resistance1.2Mpa
Operating Temperature5~50°C
Voltage Range-10%~+10%
Protect ClassIP65
Power ConsumptonAC:2.5VA   DC:2.5W
InsulationF Class
Wiring FormLead Wire or Connector type
Highest Action Frequency5Cycle/sec
Shortest Excitation Time0.05Second


Prod Model: Pneumatic Solenoid Valve 3V110-06
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: ISO9001:2008 CE, RoHS
Thread Standard: NPT, BSPT, Bsp
Export Markets: Globe
Voltage: AC110V 220V DC12V 24V
Fluid: Air, Water, Gas, Oil
Function: Change The Flow Direction
Port Size: 1/4"
Way: 3 Way 2 Position
Lead Time: 15-20 Days
Guarantee: One Year
Connection Form: Thread
Type: Direct Acting
Valve Structure: Pilot Membrane Structure
Application: Household Usage
Power Supply: AC/DC
Ningbo Excellence Automatic Industrial Co., Ltd is a leading pneumatic products manufacturer in China. And our products covers solenoid valve, air source treatment unit, control element and executive element etc, which are widely used in industries such as machinery, textile, food, enviromental protection. Our company posesses all the production capability and capacity to produce from raw material up to the finished product under requirement of ISO9001: 2008 and CE.

This production capability, coupled with R&D incorporating new technologies and know-how, enables us to serve long lasting, reliable products which can expand to a wide range of diversity.

Our goal is supplying the best qualtiy and service through advanced technology to customers.

Welcome to Ningbo Excellence Automatic Industrial Co., Ltd!
