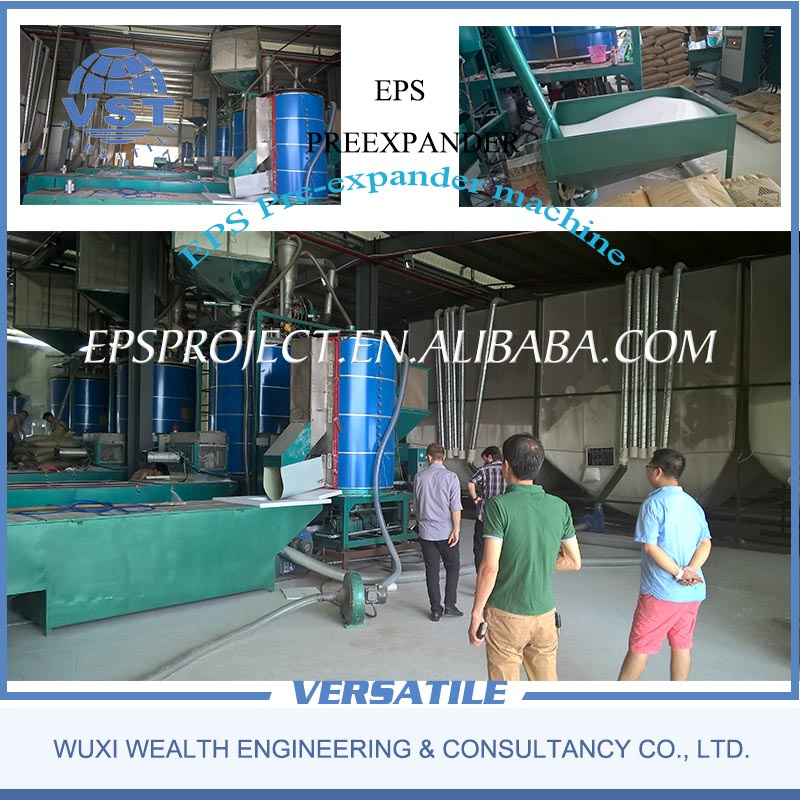

Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve
TECHNICAL DATA |
|
|
|
|
| Item |
| PSY-70 | PSY-90 | PSY-120 |
| Expansion Chamber | Diameter
Volume
Useable volume | Φ 700mm
0.6 m³
0.4m³ | Φ 900mm
1.2 m³
0.8m³ | Φ 1200mm
2.2m³
1.5m³ |
| Steam | Entry
Consumption
Pressure | DN20
80-100kg/cycle
0.6-0.8MPa | DN40
100-150kg/cycle
0.6-0.8MPa | DN40
150-200kg/cycle
0.6-0.8MPa |
| Compressed Air | Entry
Pressure | DN15
0.6-0.8MPa | DN20
0.6-0.8MPa | DN20
0.6-0.8MPa |
| Drainage | Condensate | Φ 20mm | Φ 20mm | Φ 20mm |
| Throughout | 15g/l
20g/l
25g/l
30g/l | 100g/l
120g/l
150g/l
200g/l | 150g/l
200g/l
250g/l
300g/l | 250g/l
300g/l
410g/l
500g/l |
| Material Conveying Line |
| Φ 150mm | Φ 150mm | Φ 150mm |
| Connected Load |
| 8.93Kw | 9.73Kw | 13.33Kw |
| Density | First expansion
Second expansion | 12-30g/l
8-11g/l | 12-30g/l
8-11g/l | 14-30g/l
8-13g/l |
| Overall Dimension | (L*W*H) | 4700*2660*2600(mm) | 4700*2930*3200(mm) | 4905*4655*3250(mm) |
| Weight |
| 1300kg | 1500kg | 1800kg |
| Room Height Required |
| 3000mm | 3000mm | 3000mm |
