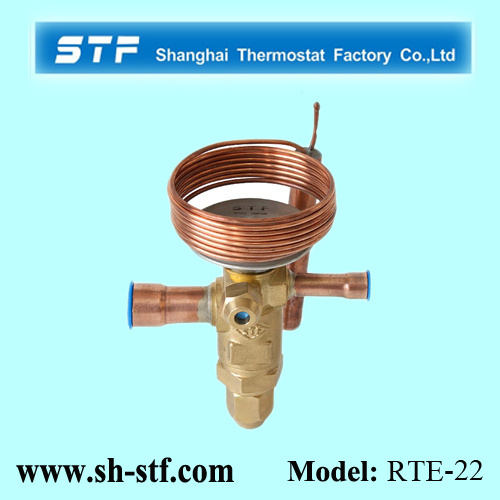

1. Suitable for: R410A
2. Max Working Pressure: 45bar
3. Evaporating temperature range: +15— - 40 degree
4. Static superheat adjusting range: 1K— 8K
5. Max operating superheat: 8K
6. Superheat adjusting:
Factory setting static superheat is 4K, the adjusting range is 1K— 8K.
How to adjust: Take off cap and turn adjusting stem, turn adjusting stem clockwise one round, increases superheat 1.5K, Turn adjusting stem anticlockwise one round, then reduces superheat 1.5K.
7. Pressure balance type:
"E"stands for External Equalizer, No"E"stands for Inner Equalizer.
Model | Nominal CapacityKW | inlet | outlet | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | External Equalizer | Capillary Length |
RT(E) 1Z | 3.52 | 10 or 3/8 ODF | 12 or 1/2 ODF | 102 | 61 | 115 | 71 | 55 | 26 | 13 | 89 | 6×1 OR 1/4SAE OR 1/4ODF | 1.5m |
RT(E) 1-1/2Z | 5.28 |
RT(E) 2Z | 7.04 |
RT(E) 2-1/2Z | 8.80 |
RT(E) 3Z | 10.56 |
RT(E) 4Z | 14.08 |
RT(E) 5Z | 17.60 |
RT(E) 6-1/2Z | 22.88 |
RT(E) 7-1/2Z | 26.40 |
RT(E) 9Z | 31.68 | 10 OR 3/8 ODF | 16 OR 5/8 ODF |
NRF(E) 10Z RT(E) | 35.20 | 12 OR 1/2 ODF 16 OR 5/8 ODF | 16 OR 5/8 ODF 22 OR 7/8 ODF |
NRF(E) 12Z RT(E) | 42.24 |
NRF(E) 14Z RT(E) | 49.28 |
NRF(E) 16Z RT(E) | 56.32 |
NRF(E) 18Z RT(E) | 63.36 |
NRF(E) 20Z RT(E) | 69.70 |
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
