Explosion Proof High Pressure Brass Solenoid Valve
| Price: |
US $ 5.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Application range | Technical parameter |
| Applies to petrochemical power, gas, analysis and measurement equipment, shipbuilding, fire equipment, HVAC, environmental protection equipment, cleaning equipment, sprinkler system, machine manufacturing, food industry and other automation control system. | Temperature of the medium: C2:-10 80 (optional) at 130 |
| Working pressure: 0 ~ 25bar, 3 ~ 50bar |
| Operation mode: step by step direct acting, pilot type, diaphragm type structure (LD88A type) |
| Job type: normally closed, normally open (diameter = 8mm) |
| Body material: brass, SS304 |
| Seal material: PTFE, NBR |
| ? |
| Function options | electric parameter |
| code | Function options | functional specification | Coil parameter:AC220V 110V 24V, DC24V 12V |
| NO | normal close | Power valve open, power off valve | levels of protection: IP65 H |
| K | normal open | Power off valve, open | : | DN1~2mm,12W |
| T | times | Can set the open, Seki Ma time | DN3~25mm,25W |

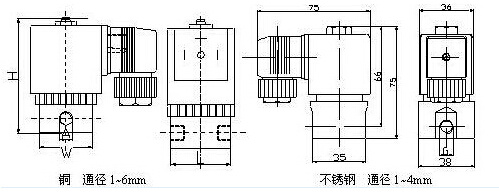

| Specification parameter list (mini - type direct acting) |
| model | Interface G | mm | Cv | L | W | H | working pressure(bar) |
| LD8801 | 1/8 | 1 | 0.02 | 32/25 | 32/20 | 66/55 | 0~25 |
| LD8802 | 1/8 | 2 | 0.08 | 32/25 | 32/20 | 66/55 | 0~16 |
| LD8803 | 1/8 1/4 | 3 | 0.16 | 32/46 | 32 | 66 | 0~10 |
| LD8805 | 1/4 | 5 | 0.32 | 32/46 | 32 | 66 | 0~4 |
| LD8806 | 1/4 | 6 | 0.55 | 50 | 38 | 85 | 0~2.5 |
| LD8801SS | 1/8 1/4 | 1 | 0.02 | 75 | 38 | 75 | 0~16 |
| LD8802SS | 1/8 1/4 | 2 | 0.08 | 75 | 38 | 75 | 0~16 |
| LD8803SS | 1/8 1/4 | 3 | 0.16 | 75 | 38 | 75 | 0~10 |
| LD8804SS | 1/8 1/4 | 4 | 0.32 | 75 | 38 | 75 | 0~6 |
|
| Specification parameter list (lead high pressure type) *LD88A series for diaphragm structure |
| model | Interface G | mm | Cv | L | W | H | working pressure (bar) |
| LD8808 | 1/4 | 8 | 2.52 | 71 | 32 | 97 | 3~50 |
| LD8810 | 3/8 | 10 | 2.52 | 71 | 32 | 97 | 3~50 |
| LD8815 | 1/2 | 15 | 2.52 | 71 | 32 | 97 | 3~50 |
| LD8820 | 3/4 | 20 | 5.0 | 91 | 57 | 116 | 3~40 |
| LD8825 | 1 | 25 | 8.5 | 117 | 71 | 123 | 3~40 |
| LD8808A | 1/4 | 8 | 2.8 | 77 | 53 | 106 | 3~50 |
| LD8810A | 3/8 | 10 | 2.8 | 77 | 53 | 106 | 3~50 |
| LD8815A | 1/2 | 15 | 2.8 | 77 | 53 | 106 | 3~50 |
| LD8820A | 3/4 | 20 | 2.8 | 66 | 44 | 91/111 | 3~50 |
Optimization suggestion
* contains impurities in the fluid, the filter should be installed in front of the valve (Filter > 60 mesh), and fluid should be no solidification or crystallization phenomenon.
* body marking direction must be consistent with the medium flow direction.
* path is less than or equal to 6mm for direct acting type, zero pressure start, also suitable for low vacuum. The diameter is equal to or larger than 8mm as pilot, need to meet the fluid pressure difference can be opened.
| Prod Model: |
LD88 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Lidea |
| Type: |
Direct Acting |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Household Usage |
