Quick Details
- Type: Valves
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: 4F210-08
- Brand Name: VPC
- color: yellow
- working medium: 40 micro filitered air
- working pressure range: 0-0.8Mpa
- operating range temperature: -5~60ºC
Packaging & Delivery
Packaging Details: | inner box carton pallet |
---|
Delivery Detail: | 20~25 days |
---|
Specifications

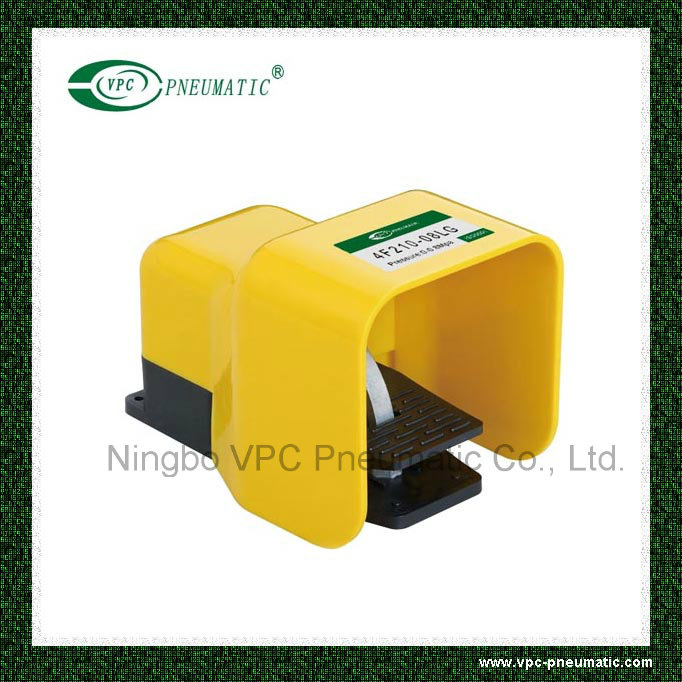

plastic foot valves
2 position, 5 way
exhaust outlet:1/4"
motion pattern,direct drive type
various types are available Summary:

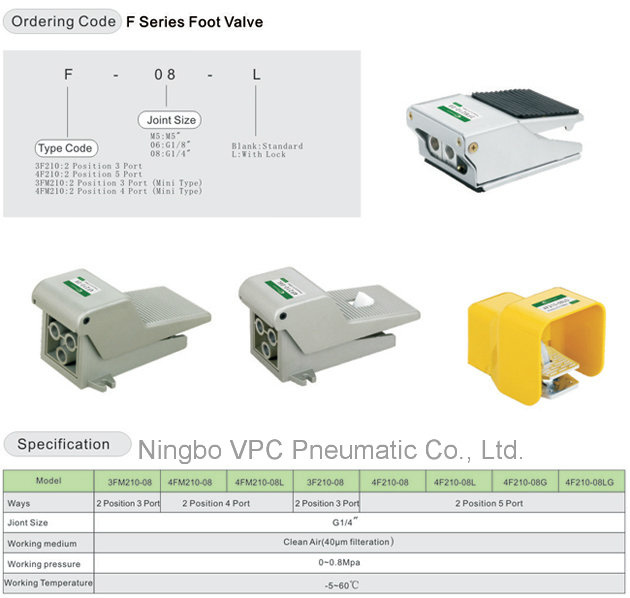

F series plastic foot valves have 1/4", M5 and 1/8", including 3/2, 4/2 and 5/2, spring return type, with lock, with cover, with lock and cover type. Also produce the special valve according to the customers' requirements.
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
