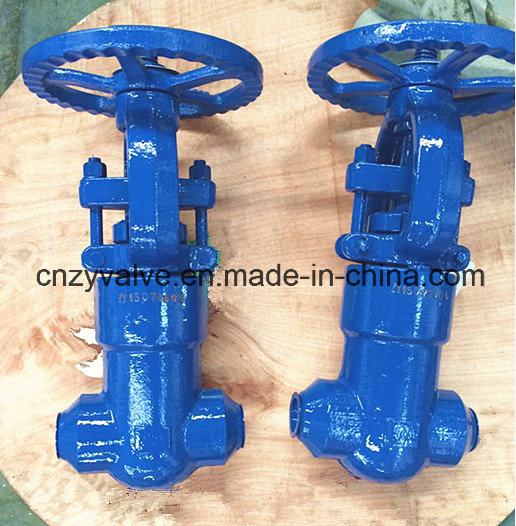

F11/F22 Psv High Pressure 2500lb Butt Weld Gate Valve
| Price: |
US $ 90/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Design features:
Certified to API602
USA VOC middle shaft micro leakage certification
Design of outside screw and yoke
Bolted bonnet
Pressure self-sealing type bonnet
Design of wedge type flexible gate and full guide rail
Operation methods: handwheel, bevel gear or electric operation
Overlay welding by hard alloy can be performed on the seat surface according to specifications in API600
Replaceable valve seat and back seat
Integral seat and back seat are adopted in stainless steel valves
Product Details
Size: 3/8"- 2"
Pressure: Class 1500LB-2500LB
Material: A105, F22, LF2, F304, F316, F304L, F316L
Design Std: BS 5352-ANSI B16.34
Testing Std.: API 598-BS6755
Ends Std.: Socket weld ends to ANSI B16.11, Screwed ends (NPT) to ANSI B1.20.1, Butt weld Ends to ANSI B.16.2
Bore Type: Reduced Bore, Full Bore
| Prod Model: |
Z61Y-2500LB-NPS3/4" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Steel |
| Connection Form: |
Folder |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
