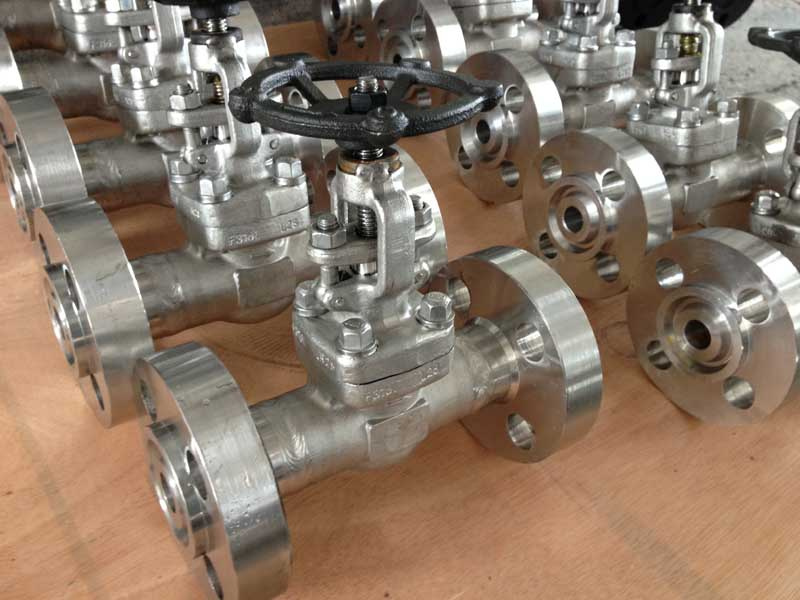

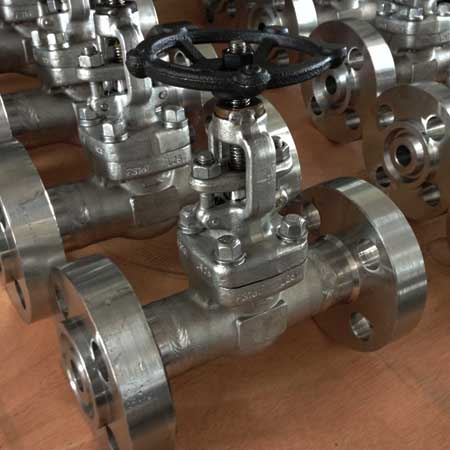

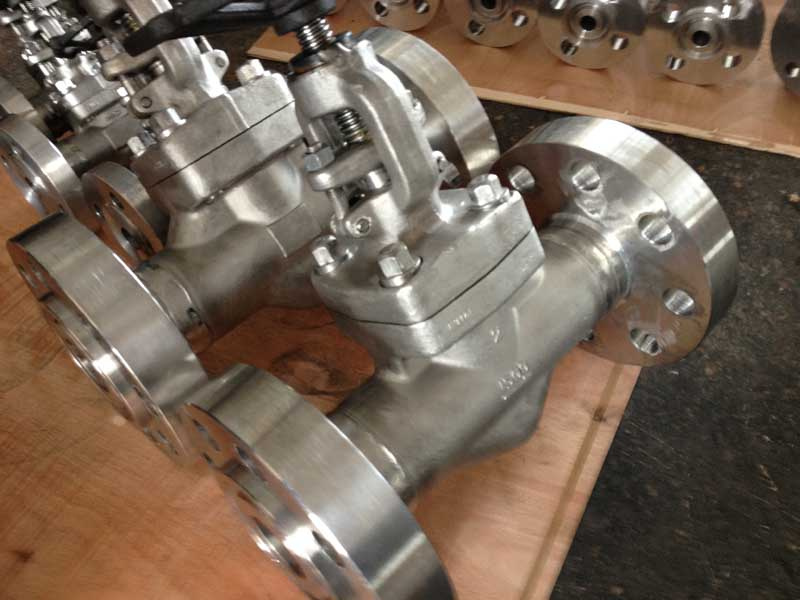

F316L High Pressure 1500lb Rj Flange Globe Valve
Price: |
US $ 550-600/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
This globe valve is with RJ flange surface and bolted bonnet design.Main Materials: F316LPressure Rating: class 1500Size: 2" Design and manufacturing: API 602Testing according to API 598Face to Face according to ANSI B16.10Flanges according to ANSI B16.5Marked as per MSS SP-25.Full Port.Outside Screw and Yoke (OS&Y)

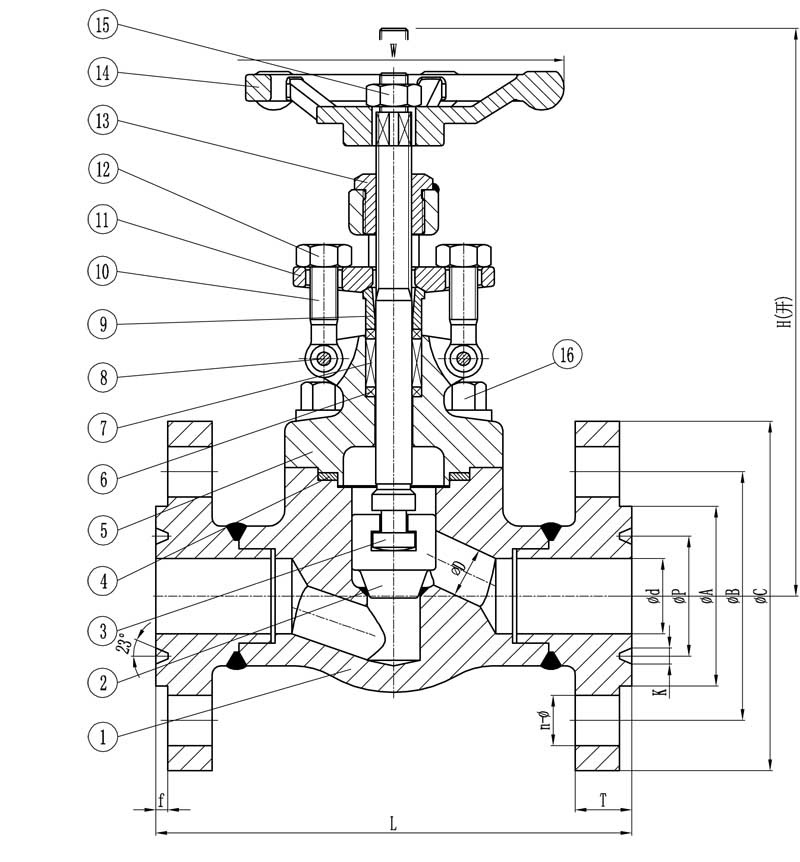

O. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
2 |
Gasket |
Corrugated SS + graphite |
SS + PTFE |
3 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
4 |
Pin |
A276 420 |
A276 304 |
5 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
6 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
7 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
8 |
Yoke Nut |
A276 410 |
9 |
H.W.Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
10 |
Nameplate |
SS |
11 |
Handwheel |
A197 |
12 |
Gland Flange |
A216 WCB |
A351 CF8 |
13 |
Stem Packing |
Flexible Graphite |
PTFE |
14 |
Bonnet |
A105 |
A276 304 |
A182 F304(L) |
A182 F316(L) |
15 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
16 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A273 316(L) |
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
Prod Model: |
THFSJ41H-1500LB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Flange Surface: |
Rj Flange Surface |
Body & Bonnet: |
Bolted Bonnet |
Structure: |
Through Way Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Sealing Form: |
Gland Packings Globe Valve |
Standard: |
ANSI |
Application: |
Forged Steel Globe Valve |
Yongjia Taihong Valve Co., Ltd. (THV VALVE) is a professional high pressure valves manufacturer for application primarily in the petrochemical industry. Our product range consist of GATE VALVES, GLOBE VALVES, CHECK VALVES, BALL VALVES, BUTTERFLY VALVES & STRAINERS. All valves are designed, manufactured and tested according to the latest manufacturing specifications of the American and International Standards Organizations.
We possesses extrusion dies heat mechanical processing, welding, assembling, testing, etc. facilities. And also our company has a strong CAD design team and a professional QC team. Our strong production equipments and perfect testing means can effectively improve product quality and be sure users' interests.
THV VALVE has obtained certificates of ISO9001: 2008 and CE. All valves are with features of advanced structure, consummate production technology, complete specifications, good quality, etc. To satisfy the requirements of purchasing different types of valves from customers, we have established a trading department to purchase good quality products for our customers. All suppliers are listed in our SUPPLIER LIST after strict quality examining, and our QC will do inspect from raw materials to finished products, to ensure all specifications or requirements will not occur problems.
Quality first is our commitment, and competitive price and timely delivery are our promise. Our customers have trusted us to provide them with reliable valve products to meet their most severe and critical requirements. We welcome customers worldwide to build mutually beneficial network, and we are looking forward to cooperation with you on the successful road to create brilliant!
