Usage
It is mounted in the inlet pipeline of pond or water tower. When the pond water reaches the preset level, the valve will shut automatically; When the water level falls, it will open automatically to start feeding water.
Characteristic
1. Airtight and reliable shut. It adopts the secure O-ring for seal by utilizing the hydraulic control theory to make the shut force of sliding disc proportional to the water inlet pressure, thus having a high sealing reliability.
2. Large flow through. The valve body adopts an all-purpose-passage streamline design with small fluid resistance and large flow.
3. Safe running. It operates by utilizing the hydraulic power to control the Iiquid level of water tower or pond automatically with a high control accuracy of liquid level.
4. Easy operation and maintenance. The main valve is mounted outside the pond, easy for debugging, check and maintenance.
Main Technology Parameter
1. Nominal pressure: 1.0MPa, 1.6MPa, 2.5MPa
2. Applicable medium: Water
3. Applicable temperature: 0~80
Scheme of installation
1. Elastic seat seal gate valve
2. Filter

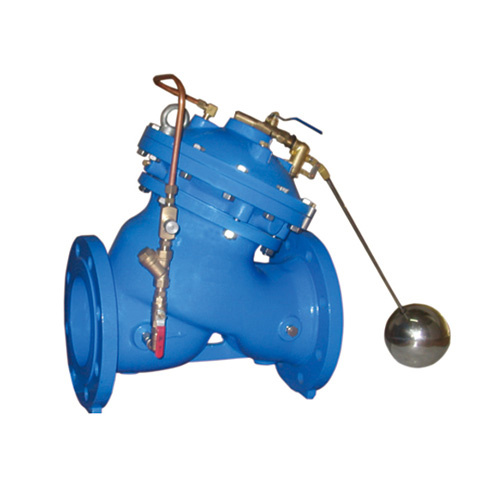

3. Remote control floating ball valve
4. Pond
5. Floating ball Pilot valve
6. Overflow pipe
7. Elastic seat seal gate valve
We are a professional piping system equipments supplier with 20 years experience. We supply gate valve, globe valve, check valve, butterfly valve, ball valve, air valve as well as flanges and pipe fittings with materials in ironn, carbon steel or stainless steel and design to API, DIN, BS, JIS, ANSI/ASTM standards.
Our products have been exporting to more than 25 countires, our QC staffs inspect all products before delivery.
