Midline Wafer Type Butterfly Valve
1. Size: DN25-1200.
2. Body: Cast iron/Ductile iron/Stainless steel.
3. Dise: Ductile iron/Stainless steel.
4. Tength more highly, seal more reliably for seat.
5. Easy and fast installation, making cost minimized.
Brief introduction of midline wafer type butterfly valve
1. Midline wafer type butterfly valve designed to comply with MSS-SP-67, BS 5155 and API609. Compatible with GB, DIN, BS, ANSI125/150 flanges. Face to face according to ISO5752.
2. Characteristic of DF316 butterfly valve is to splice the rubber liner on the body, the strength more highly and the seal more reliably for the seat.
3. One-piece thru shaft ensures dependability.

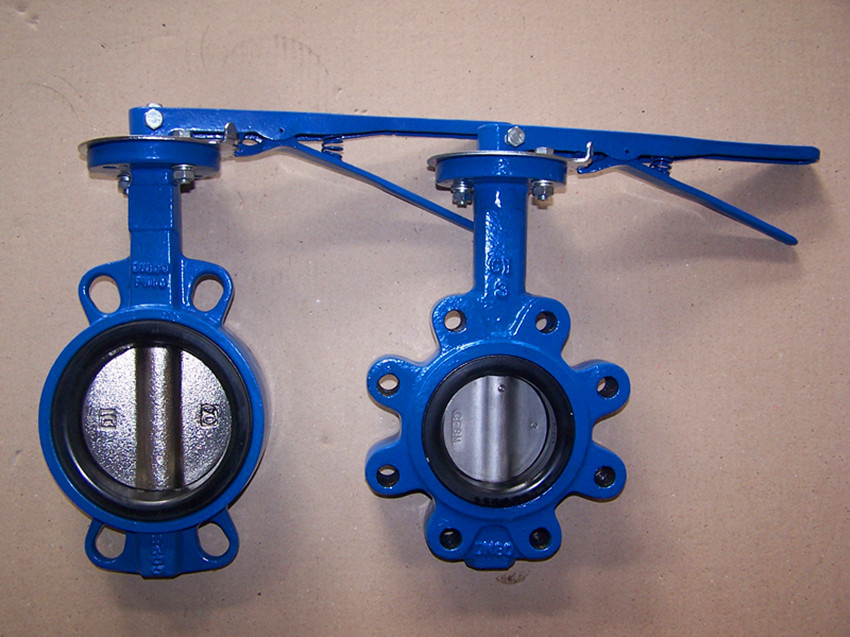

4. Available in wafer type and lug type body.
5. Available with handles, manual gear operators and electric or pneumatic actuators.
More information about wafer type spline butterfly valve.
Our butterfly valve conform to the international standard like GB, ANSI/API, DIN, BS as well as client's special specifications. The butterfly valves have met with warm reception based on excellent quality, good shipment and timely delivery time all over the world. Butterfly valves are widely sold in America, Germany, UK, Italy, Spin, Holland, Sweden, United Arab Emirates, Singapore etc.
|
Detailed Description of butterfly valve |
|
Series: |
Midlinewafer type butterfly valve |
|
Design Standard: |
API609/ISO5752 |
|
Size: |
DN25-1200 |
|
Flange: |
PN6, PN10, PN16, PN25, ANSI150, ANSI125, JIS 10K, TABLE" D" , TABLE" E" |
|
Face to face: |
ISO 5752 |
|
Body: |
Cast Iron/Ductile Iron/Stainless Steel |
|
Disc: |
Ductile Iron/Ni-plated ductile iron/Stainless steel/Al-Bronze |
|
Stem: |
Zine Plated Steel/ Stainless Steel |
|
Seat: |
EPDM/NBR/PTTE |
|
Application: |
petroleum, chemical industry, water and electricity, foodstuff, medicament, light textile, paper making, metallurgy etc. |
|
Certification: |
ISO9001: 2008, CE, SGS |
AFCON Ningjin Yahua Industries Co., Ltd. is a manufacturer specialized in design and manufacture industrial valves. It can produce more than 300 specifications, 10 categories, for example wafer type butterfly valve, flanged butterfly valve, eccentric butterfly valve, high-performance butterfly valve, check valve, ball valve, rubber wedge gate valve, Y-type strainer and pipefittings.
In 1999 the company established its own pipefitting research center. The factory has more than 30 engineers including 10 senior engineers, 2 American experts. It can design, manufacture and test the valves according to international standard such as ANSI, BS, DIN and national standards, and It also can meet customers requirement.
The company have many authentication such as ISO9001: 2000 EC's PED, CE, Germany TRD100/WO Material, Norwegian DNV Classification Society Factory as well as British LR, and ltalian RINA product. Also it set up its own quality contral and assurance system so the product can reached many countries and regions, such as the United States, Britain, German, Italy, France, Spain, Hong Kong and so on.
Meeting your requirements is always our mission. We will do our best to meet all with first-class quality, competitive price and best delivery.
