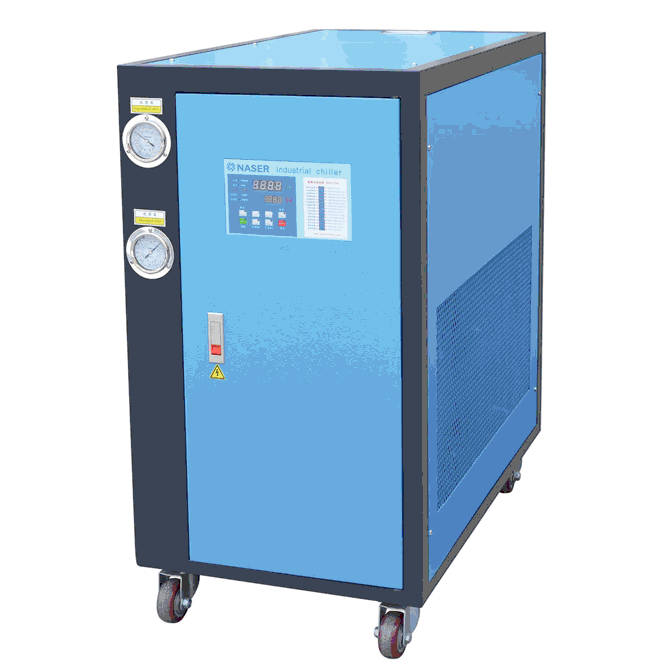

Factory Chiller/Expansion Valve Carrier Chiller
| Price: |
US $ 3800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Features of the unit:
1). Compressor is imported from Europe and America of the piston, scroll compressor, there Copeland, performance, power and durable
2). Expansion valves, filters, high and low tables, solenoid valves, gas-liquid separator, oil separator, pressure controller and other refrigeration components are used, such as Emerson, Castel drag, Danfoss, Europe, America, Japan and Taiwan Brand, high efficiency, the use of failure rate;
3). Selection of high quality low-temperature dry evaporator and plate heat exchanger, air-cooled condenser copper string of high-efficiency aluminum honeycomb, heat transfer performance; Efficiency; Adopt Microcomputer temperature control, develop independently, ordered by famous factory, have superelevation, low temperature and signal processing.
4). Machine is equipped with a reverse-phase protection, overheating and overload the compressor, pump overload protection, frost protection, high and low voltage abnormal protection, discharge protection device is also equipped with abnormal alarm and fault indicator warning buzzer, circuit can automatically cut off, safe and reliable.
| Techinical Paramaters of Water Cooling |
| Model |
|
| Type | NWS-3WC | NWS-4WC | NWS-5WC | NWS-6WC | NWS-8WC | NWS-10WC | NWS-12WC | NWS-15WC | NWS-20WC | NWS-25WC | NWS-30WC | NWS-40WC | NWS-50WC |
|
| Nominal output | 50HZ | Btu/h | 33457.2 | 44041 | 54624 | 66471 | 88764 | 108907 | 132805 | 1163189 | 229830 | 264380 | 344746 | 512100 | 645246 |
| KW | 9.8 | 12.9 | 16 | 19.5 | 26 | 31.9 | 38.9 | 47.8 | 67.3 | 77.4 | 101 | 150 | 189 |
| Kcal/h | 8428 | 11094 | 13760 | 16744.2 | 22360 | 27434 | 33454 | 41108 | 57895.2 | 66598.4 | 86842.8 | 129000 | 162540 |
| USRT | 2.7 | 3.7 | 4.5 | 5.5 | 7.4 | 9.1 | 11.1 | 13.6 | 19.1 | 22 | 28.7 | 42.6 | 53.7 |
| Power input |
|
|
| Compression | Compressor power | KW | 2.75 | 3.29 | 4.09 | 4.88 | 6.57 | 8.17 | 9.77 | 12.26 | 16.3 | 19.1 | 24.45 | 27 | 33.6 |
| Quantity | Piece | 3HP*1 | 4HP*1 | 5HP*1 | 6HP*1 | 4HP*2 | 5HP*2 | 6HP*2 | 5HP*3 | 10HP*2 | 12HP*2 | 10HP*3 | 20HP*2 | 25HP*2 |
| Flow regulator |
| capillary | expansion valve | capillary | exlpansion valve |
|
| Condenser | Style | shell and tube |
| Water flow | M3/H | 2.16 | 2.85 | 3.58 | 4.32 | 5.73 | 7.02 | 8.5 | 10.59 | 14.64 | 16.99 | 21.96 | 31.08 | 39.25 |
| Diamater of nipple | DN | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 50 | 65 | 65 | 65 | 80 | 80 |
| Retrigreant |
| R22 or R134A |
| Evaporator | Style | water tank/shell and tube |
| Capacity | L | 55 | 55 | 58 | 58 | 118 | 173 | 173 | 290 | 356 | 356 | 410 | 504 | 540 |
| Standard freezing water flow | M3/H | 1.69 | 2.22 | 2.75 | 3.35 | 4.47 | 5.49 | 6.69 | 8.22 | 11.58 | 13.32 | 17.36 | 25.79 | 32.5 |
| Diameter of standard nipple | DN | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 50 | 65 | 65 | 65 | 80 | 80 |
| Built-in pump |
| HP | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 5 | 7.5 |
| Machine weight |
| KG | 120 | 125 | 130 | 185 | 315 | 335 | 355 | 650 | 750 | 1050 | 1360 | 1390 | 1420 |
| Measure | Long | MM | 890 | 890 | 890 | 890 | 1200 | 1200 | 1200 | 1650 | 1650 | 1650 | 1800 | 2050 | 2050 |
| Wide | MM | 500 | 500 | 500 | 500 | 700 | 700 | 700 | 710 | 710 | 710 | 710 | 980 | 980 |
| High | MM | 840 | 840 | 840 | 840 | 1200 | 1200 | 1200 | 1650 | 1650 | 1650 | 1720 | 1800 | 1,800 |
| Prod Model: |
NWS-15WC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Cooling Capacity: |
49200kcal/H |
| Compressor Power: |
15HP/3*5HP |
| Standard Freezing Water Flow: |
9.84m3/H |
| Built-in Pump: |
2HP |
| Diameter Of Standard Nipple: |
Dn50mm |
| Machine Size(L*W*H): |
L1650*W710*H1650mm |
| Weight: |
650kg |
| Type: |
Water-Cooled |
| Certification: |
SGS |
| Condition: |
New |
| Compressor Number: |
3 |
In 1989, Mr Naser (Hongkong) Group Co., Ltd. Was established in Hongkong, is a collection research and development, production, sales, service as one of the modern high-tech group company, Mr Naser through continuous improvement and improve the quality of products, the accumulation of experience design and production for many years, has laid a solid foundation for high quality products. Nagin people forge ahead, constantly innovation, honor their commitments, won the unanimous praise of the new and old customers at home and abroad, the Nagin products a wide range of services to the plastic, electronic, electroplating, laser, food, textile, chemical industry, packaging, pharmaceutical and other industries.
In 1992, Mr Nagin group senior was unanimously approved by the division of labor, build factory in Hengli Town, Dongguan city investment, plant name as ---- DongGuan Naser Machinery Co., Ltd Dongguan naser machinery inherits the naser group spirit of enterprise, always adhere to "survive by quality, technology innovation, market-oriented, to serve and development" purposes, the gold group future development to a new height. NAser know, want to be in the wake of the financial crisis to achieve rapid development, we must actively implement quality + brand + standardization strategy, rely on independent R & D and innovation, so as to realize the diversification of products, superior quality, customer, service integration. As a leading member of plastic auxiliary industry, Mr Naser based on reasonable profit on the full range of services to customers, and strive to achieve greater development in the auxiliary equipment industry.
The leading product s: Cold water machine, industrial cold water machine, water cooling machine, water-cooled industrial chillers, air-cooled chiller, air-cooled industrial chillers, dryers, dehumidifiers, dehumidifier, hopper dryer series, mould temperature control machine, mold temperature machine, mold temperature machine oil type, water type mold temperature machine series, fully automatic suction machine, single suction machine, split suction machine series, plastic crusher, crushing machine, plastic crushing machine, plastic machine, plastic machine, plastic crusher, strong crusher, plastic crusher, machine series plastic scrap, color mixer, mixing machine, mixing machine, plastic mixing machine, plastic mixing machine, mixer, large tonnage of mixing machine, large tonnage blending machine, large tonnage mixing machine, vertical color mixer, vertical mixing machine, vertical mixing machine, horizontal mixing machine, horizontal color mixer, series, horizontal mixer tower, cooling tower, cooling tower, cooling tower, cooling tower water tower industry, high temperature, high temperature industrial water tower, high temperature industrial cooling towers, high temperature cooling tower, countercurrent tower and installation engineering etc.
