Valve Manufacturers and Factories

Home Valve Products Factory Direct Valve with High Quality and Low Price

Factory Direct Valve with High Quality and Low Price

Factory Direct Valve with High Quality and Low Price
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Specifications
1)Size: DN40-DN1400
2)Material: Body-CI/DI/WCB/SS
Disc: DI/CF8/CF8M/C95400
3)Professional Maufacturer for more than 10 years
Wafer Type Double Half Shaft Butterfly Valve Without Pin


Product presentation

1) Sizes:

DN40mm-DN300mm
2) Materials:
A) Body: CI(cast iron, GG25 ) / DI (ductile iron, GGG40)
B) Disc: DI / CF8 / CF8M / C95400
C) Seat: EPDM / NBR / TEFLON / VITON

3) Features:

A)Cast hole. Flange connection meet ANSI 125/150# DIN PN10/16 BS4504 PN10/16 in the meanwhile.

B)Soft seat. Replaceable. Increase of service life.

C)Double half shaft without pin.

D) Square and short neck. Easy to stick scutcheon and cost saving.



These products are widely used in water source projects, urban water supply
And drainage, sewage treatment, electric power, petroleum, petrochemical,
Heat supply, shipbuilding, medicine and metallurgy industries. Valves used for regulating or cutting off liquids in pipelines.

Liquids available include water, sewage, sea water, air, foodstuff and oil.

Specifications:
1) Working temperature: -20- +200° C
2) Suitable for handles (DN50 - 300), gear operators, electric and pneumatic
Control actuators

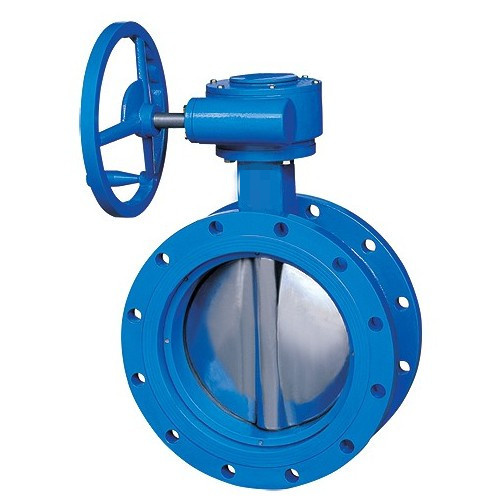

Double Flanged Type Butterfly Valve:


Size DN40mm-DN1400mm
Design Standard API 609
End flange EN1092, ANSI 125/150#, DIN2501
Face to face EN 558-1, BS5155, ISO 5752
Top flange ISO 5211


Body Ductile iron, Stainless steel, WCB
Disc Ductile iron, CF8, CF8M, C95400, C95500
Stem SS416, SS420, SS431, SS316
Seat NBR, EPDM, WRAS-EPDM
Suitale medium Sewage, Sea water, Air, Foodstuff and Oil

These products are widely used in industries such as water source projects, urban water supply and drainage, sewage treatment, electric power, petroleum, petrochemical, heat supply, shipbuilding, medicine and metallurgy industries.
Suitable Medium:
Water, sewage, sea water, air, foodstuff, oil etc.
Working Temperature:
-10° C~150° C
Operator:
Suitalbe for handles(dn50~300), gear operators, electric and pneumatic control actrators.
Products;

We can produce butterfly valves, check valves, gate valves and so on with the materials of ductile iron, carbon steel, stainless steel to order. Our products are designed and manufactured in accordance with the standards of GB, ASME, ANSI, API, BS, DIN, JIS etc.
Lug Type Butterfly Valve Without Pin

Centerline structure, pinless double half shaft design.
Disc has two-way bearing, no installation direction requirements.
Non-backed replaceable seat with good performance and a longer working life.
Square and short neck for lable use and cost saving.
Easy installation, no need flange gasket.

Size DN50mm-DN600mm
Design standard API609/EN593
End flange DINPN10/PN16, BS4504PN10/PN16, ANSI class125#/class150#
Face to face API609/EN558-1
Top flange ISO5211
Body Ductile iron/Cast iron
Disc Ductile iron/CF8/CF8M/C95400/C95500
Stem SS420
Seat EPDM/NBR/Viton/PTFE
Actuator Bare shaft/Lever/Gearbox and handwheel
Coating Epoxy/Nylon/PTFE
Pin With out pin
Suitable medium Water/Seawater/Sewage/Air/Foodstuff/Oil
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Tianjin,China
Material: Casting
Temperature: -20-+200c
Media: Water Oil Gas
OEM: Available
Package Detail: Bubble Pack for Each Valve&Plywood Cases. or as PE
Delivery Time: Within 25 Days After Receiving The T/T Down Pament
Tianjin Sweet Curing Bladder Co., Ltd. "Sweet" is a company who specializes in making tyre bladders, rubber hoses and hose fittings & accessories in China with investment of 2 billion. The company is located in harbor economic zone, Binhai New district of Tianjin city, covering an area of 50, 000 square meters.

Sweet is ISO certificated Manufacturer with abundant experience in manufacturing and exporting various kinds of tyre bladder, rubber hoses and hose fittings & accessories to world's markets, So we can provide the most competitive prices with best quality.

With the most advance testing equipments, Injection and Molding Presses for Tire Bladders, complete set of auxiliary production equipment and powerful technical strength, the company possesses the ability of self-design and development.

Sweet believes "Technology makes progress, quality creates advantage and brand gains benefits" which brought us a wonderful prestige in market and popular acceptance by customers with our pursuit of customers' needs and customer services.

We can also help you find everything related to our products. We have high reputed and good relationship with many other manufacturer to offer you the best quality with lowest price.
