PRODUCT OVERVIEW

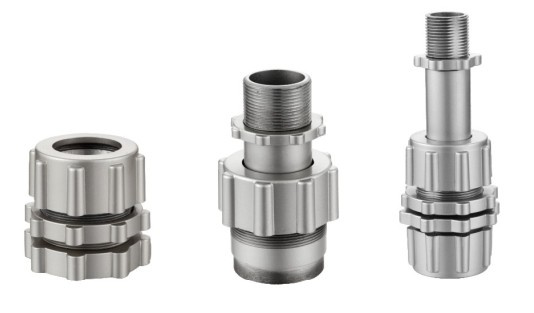

A wall connector consists of and aluminum alloy cast part, stainless punched part and rubber part for the connection of inner and outer pipe of airtight containers such as the connection between the blowing tube of pulse jet bag-house and rectangular pulse valve and outlet pipe(head tank mounted). It can be reliably fixed and sealed without welding and is convenient for installation and maintenance.
NOTE
A wall connector can keep the gas in the pipe flow freely and effectively seal the container connected to the pipe.But it should not be used to support the parts like the connected pipe and container. The user should not take reliable actions to support them.
|
APPLICATION |
|
FAP-A-1 |
Pulse jet bag-house with removable bag and dressed nut series electromagnetic pulse valve below perforated plate |
|
FAP-A-2 |
Pulse jet bag-house with removable bag and dressed nut series electromagnetic pulse valve above perforated plate |
|
FAP-A-3 |
Pulse jet bag-house with removable bag and dressed nut series electromagnetic pulse valve above perforated plate |
|
FAP-B-1 |
Square head and Embedded series electromagnetic pulse valve(thread connection) |
|
FAP-B-3 |
Square head and Embedded series electromagnetic pulse valve(slip connection) |
|
FAP-C-1 |
Square head and the outlet end of Embedded series electromagnetic pulse valve |
