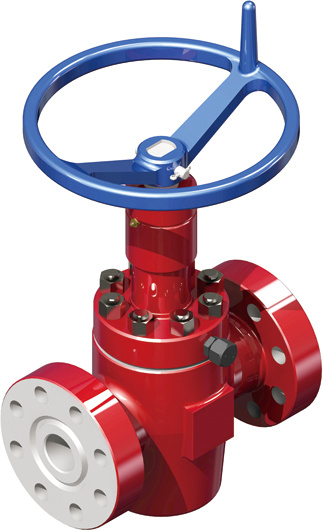

Fc Type Flat Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Non-rising stem slab gate valves manufactured by jiangsu Edlong petroleum machinery co.,ltd . are available in temperature classes L, P, R, S, T, and Uspecified in API 6A. Gate valves to be used in the 350OFor 650OF high temperature can be supplied on request.Fire-proof gate valves also can be supplied to API 6A.Gate valves manufactured by our company are avail-able in 2000psi, 3000psi, 5000psi, 10000psi,1500psi and20000psi working pressure, material classes from AA through FF, product specification levels (PSL) from 1through 3 and performance requirement (PR) 1.
Simple structure and renewable gate and seat assembly..
One-piece and double-acting gate with long service life.
Both thrust bearings with large load capacity andcomposite rubber-plastic stem lip packing minimize op-erational torque.
Bearing cap is provided with a grease cup to makeit easy to inject lubricating grease in the field.
Threaded packing gland allows removal of bear-ings and stem packing under line pressure.
Both the bolted bonnet and modern bonnet seal ringprovide simple structure and reliable sealing.
The sealing surfaces of the gate and seat arehardfaced for wear and corrosion resistance.
Wave springs are installed between the body andseat and between the gate and seat. The gate and seatstill maintain a positive metal to metal seal under low pressure.
Floating gate design requests the hand wheel to bebacked off 1/4 turn after its rotation can go no further.
| Connection Form: |
Flange |
| Material: |
Steel |
| Application: |
Industrial Usage |
Jiangsu Yidelong Petroleum Machinery Co., Ltd. is a modern enterprise with registered capital of US$ 4, 580, 000 and annual sales amount of two hundred million yuan. Thanks to the efforts of all employees and supports from all walks of the society, now it has more than 200 employees, including 10 senior engineers and 30 senior and middle-level technical management personnel. There are 150 sets of equipments for cold and hot working, more than 30 sets of testing equipments. Moreover, it is equipped with mechanical property testing center and chemical analysis room. The company has passed the certification of ISO9001 international quality system and licensed by the API Monogram Program for Spec 6A, 6D, 7-1, 16A, 16C and 16D.
We have been adhering to the tenet of "Customer and Quality First, Brand Building with Honesty" and working hard to provide excellent service to our customers. In addition, our company has won gold prizes of national, provincial and municipal awards for advanced enterprises for several times.
Our Company mainly produces high-pressure and medium-pressure series valves with nominal pressure of PN2.5-140MPa and nominal diameter of DN3-500mm, we provide oil (gas) production wellhead, casing head, tubing head, kill manifold, choke manifold, drilling fluid manifold, drilling and production accessories, pneumatic test pumps, throttle control box, blowout preventer and so on. We can also design valves of special specifications as per users' requests. The products are manufactured in accordance with international standards ISO/DF, American standards ANSI and API, national standards GB, petrochemical standards SY and other professional standards, and have been widely applied in petroleum, chemical industry, metallurgy, power station and other industrial pipelines.
Yidelong has advanced techniques, excellent facilities and powerful technical force. We strictly abide by the credibility of the contract, welcome domestic and foreign clients to visit our company and cooperate with us!
