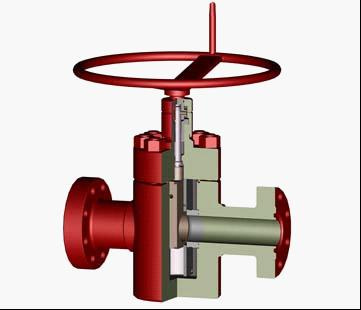

Full-bore design, effectively eliminate the pressure drop and eddy current, slow flow of solid particles in the valve
The unique sealing, make the switch torque greatly reduced
Between bonnet & body and gate & seat are adopt metal to metal seal
Between gate and seat are adopt metal to metal seal, Surface spraying (heap) welding hard alloy, has good abrasion resistance, corrosion resistance.
Seat ring is fixed with plate, keep well steadly
Stem has back seal structure so as to replace seal ring of stem with pressure
There is seal grease injection valve on bonnet side so as to repair seal grease, and provided seal and lubricate performance of gate and seat
It is match with all kind of pneumatic (hydraulic ) actuator as customer's requirements
Working pressure 2000PSI~20000PSI
Nominal bore 1.13/16"~9" (46mm~230mm)
Working medium oil, nature gas, mud, consist of H2S CO2gas
Working temp. -46° C~121° C(LU)
Material AA, BB, CC, DD, EE, FF, HH
PSL PSL1~4
PR PR1~2
Jiangsu Haotian Petroleum Equipment Co., Ltd. is an enterprise specialized in the research, development and production of wellhead equipment in China. We are one of the top ten enterprises of China Petroleum & Petrochemical Equipment Industry Association.
Relying on approved credit and excellent services, our company has established long-term cooperative relationships with many petroleum enterprises. Our main products include 14-40 Mpa series oil/gas wellheads, thermal wellheads, water injection wellheads, casing heads, choke & kill manifolds, ocean manifolds, API 6A gate valves, expanding gate valves, FC valves, choke valves, check valves and other drilling fittings. Our products have passed the inspection made by national oil and gas wellhead test center and are exported to North America, the Middle East, Indonesia, Kazakhstan and so on
Our company is a member of the supply network for CPMEC, China Petrol-chemical supplies & Equipment Co., Ltd. And China Petroleum Materials & Equipment Export Co., Ltd. We have passed ISO9001, API 6A and API 16C product & technical specification certifications.
