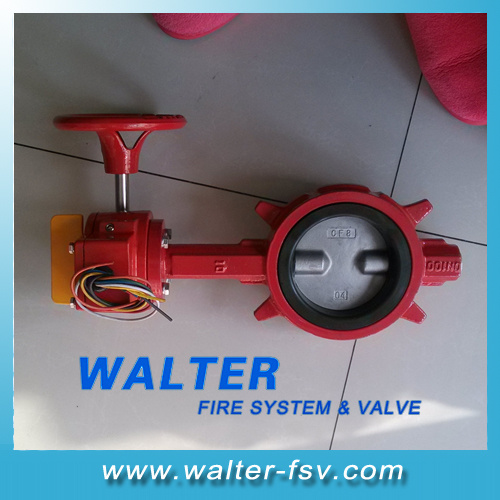

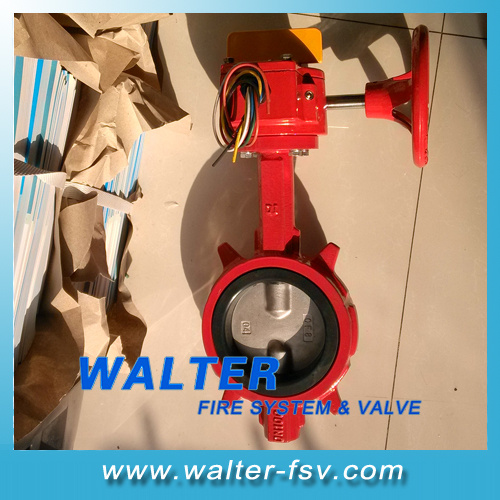

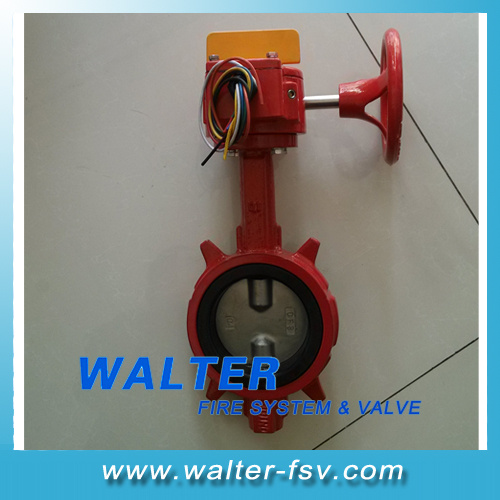

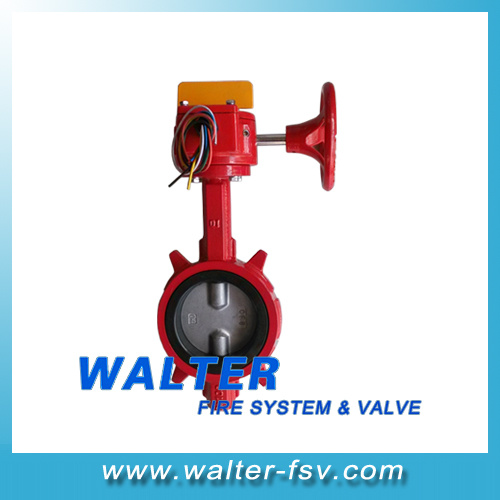

Fire Signal Butterfly Valve
| Price: |
US $ 30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Fire Signal Butterfly Valves are mainly used in fire fighting system.
FIRE SIGNAL BUTTERFLY VALVE
1) SIZE: DN50 - 300
2) BODY: DUCTILE IRON GGG50
3) DISC: STAINLESS STEEL, DUCTILE IRON OR BRONZE
4) SPINDLE: STAINLESS STEEL
5) SEAT: EPDM OR RUBBER
6) CONNECTION: WAFER OR GROOVE
7) PRESSURE RATE: PN16, 200PSI OR 300PSI
8) SURFACE: RED EPOXY RESIN COATED
9) USAGE: FIRE-FIGHTING SYSTEM
10) PACKING: BUBBLE BAGS & PLYWOOD CASE
11) DELIVERY TIME: 15 DAYS
CHARACTERISTIC:
1. Approved Gear Operator for both Indoor or Outdoor use
3. Low Torque Operation
5. Options of Double Internal Supervisory Switches
WALTER-FSV COMPANY PROVIDE OEM SERVICE FOR BUTTERFLY VALVE, CHECK VALVE, GATE VALVE, CONTROL VALVE, STRAINER, FOOT VALVE, HYDRANT SUCH LIKE.
| Prod Model: |
D71X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Fire Signal Butterfy Valve |
| Body: |
Ductile Iron |
| Stem: |
Stainless Steel |
| Disc: |
Stainless Steel, Bronze, Ductile Iron |
| Operator: |
Gearbox |
| Seat: |
EPDM |
| Electric: |
24VAC, 220V |
| Connection: |
Wafer or Groove |
| Pressure Rate: |
Pn16 |
| Surface: |
Red Epoxy Resin |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Fire Fighting |
Company Profile:
Suzhou Walter Flow Control Equipment Co., Ltd. Are a professional company specializing in fluid & firefighting equipment.
We do, and always will, fashion our long time business relationships from advanced technology, excellent quality and good service.
Walter Flow Control supplies products with FM, UL, CE and all other relevant certificates for use in Water Reticulation and Treatment Systems, Fire-fighting Projects, High Rise Buildings, the Oil, Gas and Chemical Industries etc.
Company Products:
Valves: Gate Valve, Butterfly Valve, Check Valve, Automatic Hydraulic Control Valve, Air Release Valve, Globe Valve, Ball Valve, Strainer, Pipeline products, etc.
Firefighting: Fire Sprinklers, Wet Alarm Check Valve, Deluge Valve, Water Flow Detector, Foam Extinguisher System, Gas Extinguisher System and Fire Hydrant System, Fire Hose, Fire Hose Reel, Fire Monitor, etc.
Standard & Certificates:
Walter products are design acc. To DIN, BS, ANSI, AWWA, EN, ISO, AS, API standard and relevant products can be provided with FM approval, UL listed, CE certificates.
