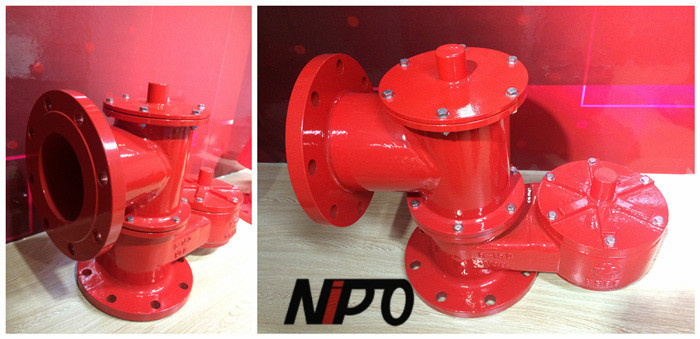

Flame Retardant With Discharge Nozzle Breathing Valve
Breathing valve is a kind of air breather which install on the petrochemical fixed storage tank, in order to avoid tank over the pressure or vacuum making the storage tank destruct, prevent the outside flame enter, reduce the tank fluid volatile.
Take out take (fire) breathing valve overview:
1, Take out over the (fire) breathing valve type HXF-HJ/HJZ is a new improved type respiratory valve, set the dual role breathing valve and tank fire arrestor, and then exhale take over.
According to the national standard of "petroleum chemical enterprise design specification for fire" (GB50160-92) Regulations: "fixed roof tank Chu Cunjia, B liquid, flame arrester should be located and breathing valve".
Take out take (fire) breathing valve type HXF-HJ/HJZ is the main safety equipment for crude oil, gasoline, kerosene, indispensable light diesel, aromatics and other fixed roof storage tank, is to prevent the evaporation loss and protect the tank overpressure or vacuum in the subject effect from destruction.
Take out take (fire) breathing valve is the maintenance of tank pressure balance, reduce safety energy-saving products medium volatile.
Take out take (fire) breathing valve HXF-HJ/HJZ type ventilation and fire retardant device installed in the fixed roof tank, can rise to reduce the evaporation loss, control the tank pressure balance control and flame interaction.
It can carry out the features of automatic adjustment on tank inside and outside pressure.
2, A lot of breathing valve variety, each have different properties and characteristics, the choice should be to meet the conditions in accordance with its characteristics, whether can achieve optimal running effect, to consider various aspects of some objective factors.
Take out take (fire) breathing valve type HXF-HJ/HJZ is one of the most popular products, with exhale take over (fire) breathing valve in the system play a security role.
In practical application, its characteristics should be selected according to the type of the actual needs, and based on the maximum discharge capacity to choose their path is the best scheme.
Operating pressure:
Type A: +355pa(+36mmH2O) -295pa(-30mmH2O)
Type A: +355pa (+36mmH2O) -295pa (-30mmH2O)
Type B: +980pa(+100mmH2O) -295pa(-30mmH2O)
Type B: +980pa (+100mmH2O) -295pa (-30mmH2O)
Type C: +1950pa(+200mmH2O) -295pa(-30mmH2O)
Type C: +1950pa (+200mmH2O) -295pa (-30mmH2O)
Type D: according to user requirement (special pressure rating)
Note:
under normal circumstances, (fire) breathing valve operating pressure to B shall prevail;
Applicable materials:
gasoline, kerosene, diesel, aromatics, sulfur, air and other petrochemical materials;
Environment temperature:
-40 ºC -+60 ºC;
Shell material:
HT, AL, A3, 18-8, 304, 304L, 316, 316L.
Flange standards:
HG20592-97 PN1.0 (also can be produced according to user specified criteria)
PRODUCTS
WORKSHOP

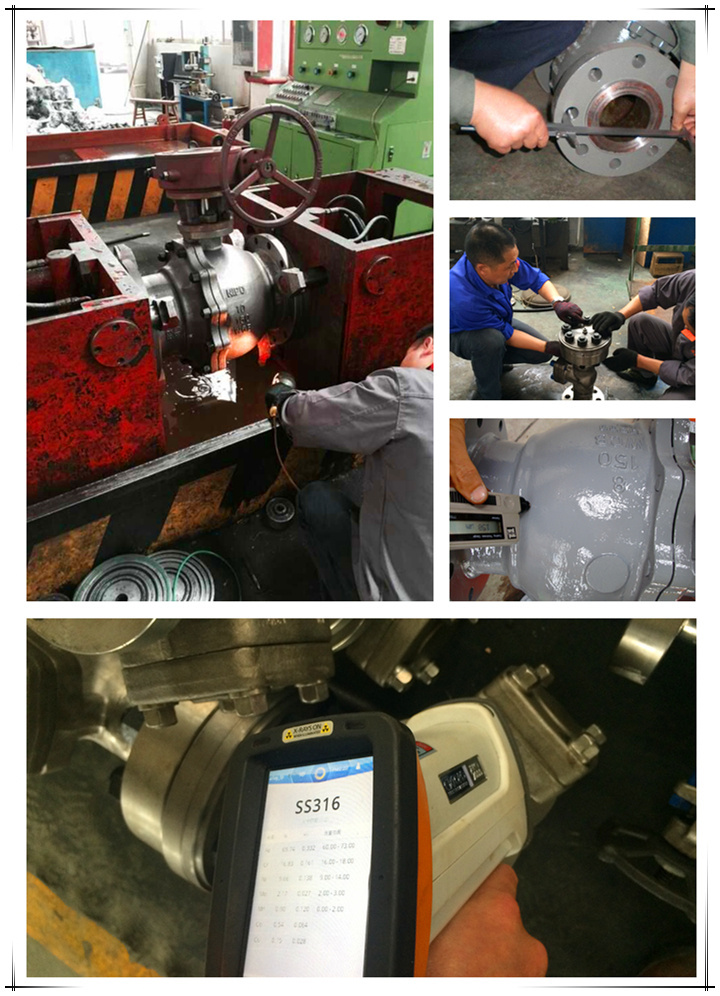

INSPECTION
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you,
Naibang will be one of your best parters in China.
Any interest,please do not hesitate to contact us.
| Specifications |
| Applicable Standards |
|
| Design | ASME B16.34, API6D |
| Fire safe | API 607 |
| Anti static | API 608, API6D |
| Face to face | ASME B16.10, API6D |
| Welding ends | ASME B16.25 |
| Inspection and test | API 598, API 6D |
Zhejiang NaiBang Valve Co., Ltd. is a specialized company devoted into manufacture and sales of valves, the company situates in ou-bei town-the center of China's pumps & valves, with ground area 18800m2, machine workshop, assemble workshop and synthetic finished half - finished warehouse. The company possesses 210 precise equipments, the advanced numeral control machines ensure the flexibility and exchangeability of all the product parts. The company flourishes year by year, and its products have been widely used in lines of domestic large PowerStation configuration, dirty water processing, urban construction, petroleum-chemical, oil extraction, metallurgy, chemical fertilizer, paper production and pharmacy, exported to many countries and regions, gains the users' unanimous praise and confidence.
The company has a modernized staffs of tech research and product development, ISO9001 certificated. And now the company has the capability of manufacturing big series of high temperature and hi-gh pressure power station gate valve, ball valve, globe valve, check valve, butterfly valve, with the strength of API valve, Wafer check valve and forged valve, and the wafer check valve mainly cover wafer single disc lift and swing check valves and wafer double disc swing check valves (H77, H76, H74, H72, H71, H46 and H44). Diameter of valves varies from DN15 to DN2000(1/2'-72' ), working pressure varies from PN1.6MPa to 42 MPa(150lb to 2500lb), and working temperature from -196 Celsius degree to +570 Celsius degree; The main body adopts WCB, WC6, WC9, Cr5Mo, 20Crmo, 12Crmov, 15Crmov, CF3m, CF8m. The company possesses full precise casting equipments, integrated physical and chemical gauges, experimentation equipments and test methods, as well CAD design capability, which ensure products always in high quality.
