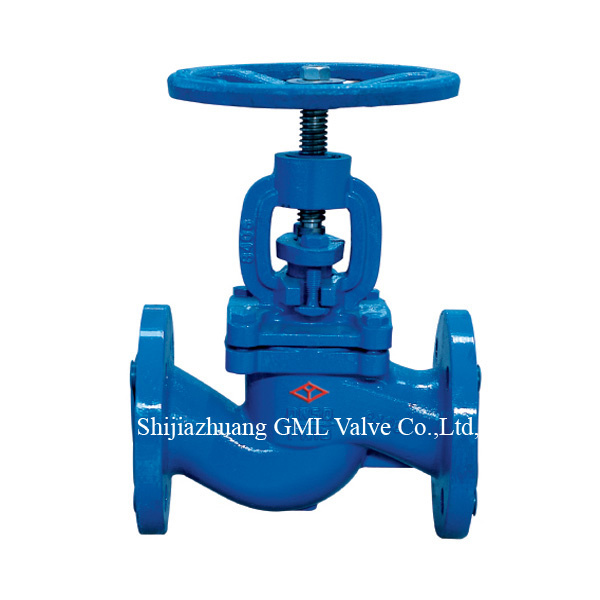

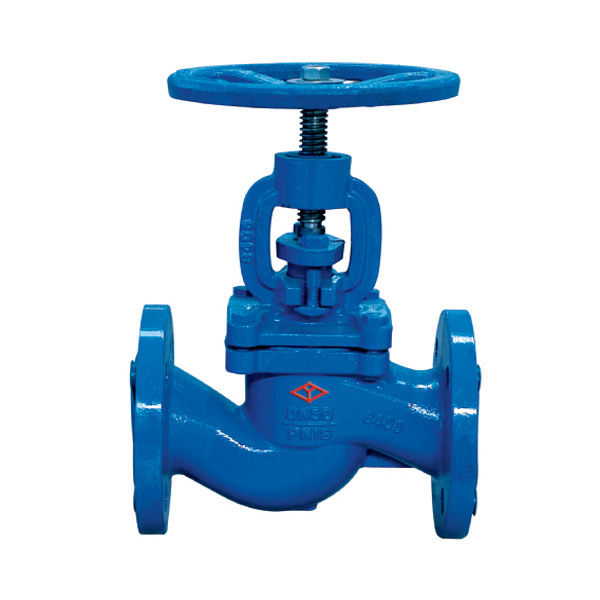

DIN Globe Valve
Specifications
1)Nominal pressure: 1.6MPa
2)Shell test: 2.4MPa
3)Seal test: 1.8MPa
4)Body: Grey iron
5)Bonnet: Grey iron
6)Disc: Grey iron GG25+2Cr13
7)Stem: Stainless steel
8)Seat ring: Stainless steel
9)Suitable medium: Water, oil, vapoor etc.
10)Actuator: Manual

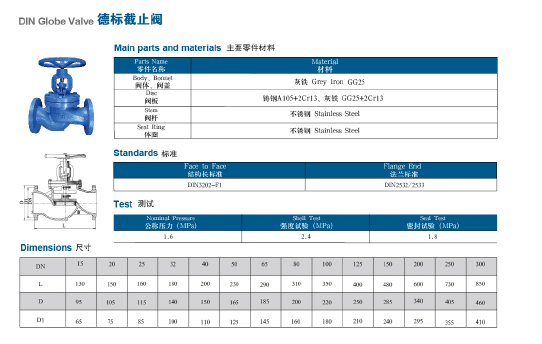

Standard
Face to face: DIN3202-F1
Flange standard: DIN2532/2533
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
| D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
| D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
