Specifications
rising stem flange gate valve
1. Flange end
2. PN10-16
3. Trim: bornze, stainless steel
4. Factory

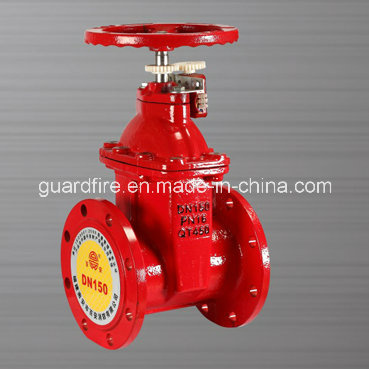

Mintai Z41X-16 rising stem flange gate valve
Product Description
Design and manufacture standard: GB12234,GB12232,AP1602
Structure length standard: GB12221,ANSIB16.10
Pressure test standard: GB13927,AP1598
Z41T-16
Z41T-16
1. Technical feature
working pressure: 1.6Mpa
ruggedness test: 2.4Mpa
seal test: 1.76Mpa
operating temperature: ≤100°C
Suitable medium: water, vapor, oils, nitric acid, acetic acid and etc.
2. 1.6Mpa product shape connection dimension(mm):
DN | L | D | D1 | H | Z-d |
| 50 | 170 | 160 | 125 | 350 | 4-Φ18 |
| 65 | 195 | 180 | 145 | 370 | 4-Φ18 |
| 80 | 205 | 195 | 160 | 395 | 8-Φ18 |
| 100 | 230 | 215 | 180 | 415 | 8-Φ18 |
| 125 | 258 | 245 | 210 | 460 | 8-Φ18 |
| 150 | 265 | 280 | 240 | 500 | 8-Φ23 |
| 200 | 295 | 335 | 295 | 710 | 12-Φ23 |
| 250 | 325 | 390 | 350 | 1150 | 12-Φ23 |
| 300 | 365 | 440 | 400 | 1400 | 12-Φ23 |
| 350 | 420 | 500 | 460 | 1680 | 16-Φ23 |
| 400 | 450 | 565 | 515 | 1750 | 20-Φ23 |
