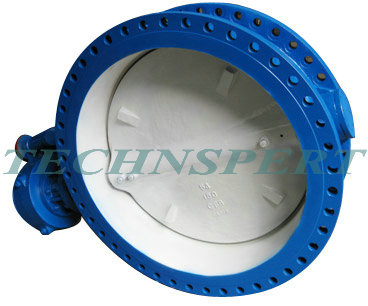

Flange Rubber Soft Seal Butterfly Valve
Price: |
Negotiable |
Trade Terms: |
CFR |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
Butterfly Valve Standards:
*Design: BS 5155, API 609
*Face to Face: ASME B16.10
*Connection End: ASME B16.5, ASME B16.25, ASME B16.11
*Test: API598, API6D
Product range: Flange Butterfly Valve, Wafer Butterfly valve, Lug Butterfly Valve, Concentric Type Butterfly Valve, Eccentric Type Butterfly Valve etc.
Detailed Description: |
Series |
flanged butterfly valve |
Size: |
DN40-DN1200/1.5” -48” |
End flange: |
ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E |
Face to face: |
ANSI B 16.10 |
Top flange: |
ISO 5211 |
Nominal pressure: |
DN40-DN600(1.5” -24” ) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28” -48” ) PN1.0MPa(150PSI) |
Body: |
Cast Iron/Ductile Iron/WCB/Carbon steel/CF8, SS304/CF8M, SS316 |
Disc: |
Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/Rubber lined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel
|
Stem: |
SS416/SS304/SS316/SS431/17-4PH/Monel |
Seat: |
NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE |
Operation: |
Hand Lever, Worm Gear, Pneumatic, Electric actuator |
Suitable temperature: |
Normal Temperature -45 ~150 |
Medium: |
Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection Form: |
Flange |
Working Temperature: |
Normal Temperature (',-40??C
|
Work Pressure: |
High Pressure (',10.0mpa< Pn <80.0mpa) |
Seal Form: |
Force Sealed |
Material Of Seal Surface: |
Soft Sealed |
Structure: |
Concentric Type Butterfly Valve |
TECHNSPERT is your Technology Expert of industrial valves and pipeline accessories.
At TECHNSPERT, you will find an extensive range of industrial valves, fittings, pipes, flanges, gasket, fasteners and other spare parts for oil, gas, refinery, water treatment and industrial applications, with more than 80 products available in over 600 sizes and 30 materials.
The company mainly manufactures the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main Manufacturing and Supplying Capability Covering Gate Valve, Ball Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Plug Valve, Strainer etc. Approved by ISO9001: 2008, API600, API6D, API6FA and CE/PED. The products are widely used in the field of petroleum, chemical, metallurgical, power, fuel gas, city pipeline networks. The products have been exported to USA, Canada, Germany, Peru, Jordan, Kenya and other countries, and has set up the office in Manhattan, New York. With advanced technology and reliable quality, our products have gained great reputation all over the world...
With a wide range of valves from stock or on site at the factory, we are well placed to meet delivery times expected in today's commercial climate. Today, by combining stocks of various of valves, with indepth technical expertise in their specification and use, we are relied upon, as leading valve suppliers, to source and modify valves that precisely meet our customers requirements and deadlines.
TECHNSPERT is a company on the move, ever growing and expanding. By working with TECHNSPERT our customers join in a partnership with a family of factories who bring traditional values of service and quality into a technological combination. If you have any questions or would like more information, please feel free to contact us.
