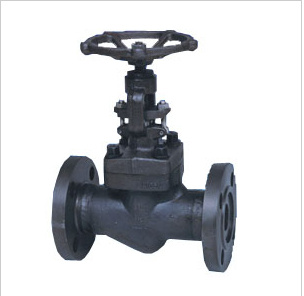

Flanged and BW Forged Steel Globe Valves
Product Description
Followings are the details of the Forged Steel Gate Valve made by our company:？
1. Technical Specifications:？
(1)Design Standard: API 602/ANSI B 16.34？
(2)Face to Face Dimensions: ANSI B16.10？
(3)Connection Type: Flanged End ANSI B16.5？
(4)Structures: Bolted Bonnet, Welded Bonnet and Seal-sealed Type？
(5)Test Standard: API 598？
2. Performance Specifications:？
(1)Shell Test: 19.5Mpa(800LB), 37.5Mpa(1500LB), 63.0Mpa(2500LB)？
(2)Seal Test: 14.3Mpa(800LB), 27.5Mpa(1500LB), 46.2Mpa(2500LB)？
(3)Suitable Temperature: Carbon Steel -29-425 Celsius degree, Stainless Steel: -59-540 Celsius degree？
(4)Suitable Medium: W. O. G？
3. Main Parts and Materials:？
(1)Body: A105, LF2, F5, F11, F22, F304, F316？
(2)Disc: A276-420+STL, 304+STL, 316+STL？
(3)Stem: A276-410, A276-304, A276-316？
(4)Gasket: 304+Graphite, 316+Graphite？
(5)Bonnet: A105, LF2, F5, F11, F22, F304, F316？
(6)Eye Bolt: A193-B7, 304, 316？
(7)Pin: A276-410, A276-304？
(8)Packing: Flexible Graphite +304, PTFE？
(9)Bolt: A193-B7, 304, 316？
(10)Gland Nut: A194-2H, 304, 316？
(11)Lock Nut: C. S, S. S？
(12)Handwheel: A47？
(13)Stem Nut: A108-1045, A276-410？
(14)Gland Flange: A105, F304？
(15)Gland: F6a, A276-304, A276-316？
4. Main Sizes and Dimensions: Please consult the table below!？
If this product interests you, please feel free to contact with us!？
You can also visit our website？
Quality First and Reputation Uppermost!
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
